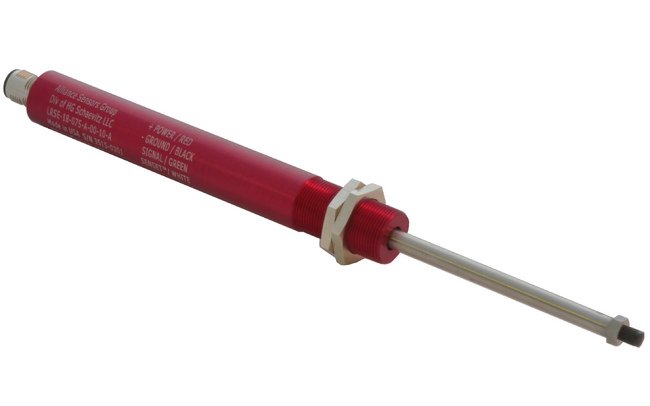

3-Inch Spring Loaded Linear Sensor with 0-10V DC Output
3-Inch Spring Loaded Linear Sensor with 0-10V DC Output
SKU:SPR-c82f95
Accurate 3-Inch Spring Loaded Linear Sensor with 0-10V DC Output, Aluminum Body, CE Approved
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
3-Inch Spring Loaded Linear Sensor with 0-10V DC Output
$99.99
Quantity: 1
Claim Your Seller Account
3-Inch Spring Loaded Linear Sensor with 0-10V DC Output
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3-Inch Stroke Spring Loaded Linear Sensor delivers precise measurements with a 0 to 10 Volt Output, ideal for industrial applications requiring accurate positioning. Crafted with an Aluminum Body, this sensor ensures durability and reliability. With a wide Temperature Range of -40 to 105 ºC, high Linearity (<0.25% of Full Scale), and a fast Update Rate of 300 Hz, it guarantees optimal performance in varied environments. Approved for European Conformity (CE), this sensor is your trusted solution for consistent and compliant voltage sensing needs.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
3 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
3 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
