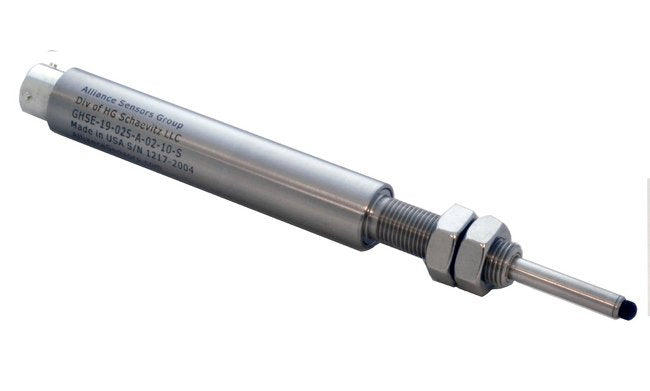

3 Inch Stainless Steel Spring Loaded Linear Sensor

Name: 3 Inch Stainless Steel Spring Loaded Linear Sensor
Brand: Alliance Sensors Group
SKU: SPR-a69eda
Price: 129.99 USD
Availability: OutOfStock

SKU:SPR-a69eda

High-precision 3-inch stainless steel linear sensor with 0-10V output. Ideal for industrial monitoring applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3 Inch Stainless Steel Spring Loaded Linear Sensor by Alliance Sensors Group offers precise monitoring with a 0 to 10V output. Designed for industrial applications, this sensor features a stainless steel body, a temperature range of -40 to 105 ºC, and <0.25% linearity. With a fast 300Hz update rate and European Conformity approval, it ensures accurate measurements in diverse environments.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Connector Type

Axial Power Take-Off (PTO)

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

3/4 in

Technical Specs Range

3 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Sensor Type

Spring Loaded

Technical Specs Size

3/4 in

Technical Specs Stroke

3 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Update Rate

300 Hz

3 Inch Stainless Steel Spring Loaded Linear Sensor
