3-Inch Standard Brass Companion Flange
3-Inch Standard Brass Companion Flange
SKU:FIT-ba7f12
Highly durable 3-inch brass companion flange for secure and leak-free connections in piping applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
3-Inch Standard Brass Companion Flange
$39.99
Quantity: 1
Claim Your Seller Account
3-Inch Standard Brass Companion Flange
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3-Inch Standard Brass Companion Flange is precision-engineered for durability and performance. With an O.D of 7 1/2 inches and a bolt circle diameter of 6 inches, this flange ensures a secure and leak-free connection. Its 5/8-inch flange thickness and 4-bolt design provide strong support for various piping applications. Compliant with Federal/DoD procurement standards and FAR compliance factors, this companion flange is ideal for institutional and government projects requiring top-quality brass fittings.

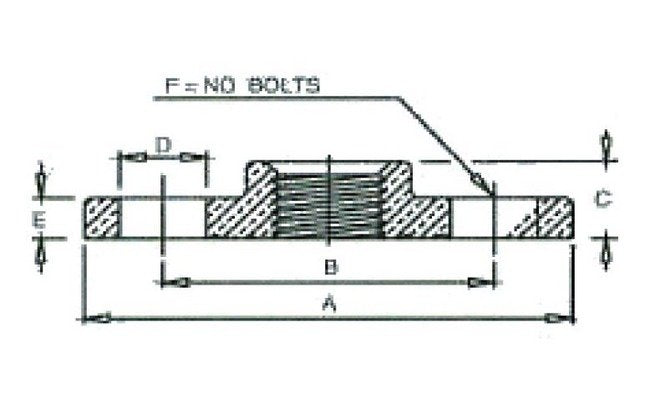

Product Specifications
Specifications Diameter Of Bolt Circle B
6
Specifications Diameter Of Bolt Hole D
3/4
Specifications Flange Thickness E
5/8
Specifications Height C
1 3/16
Specifications No Of Bolts F
4
Specifications Od Of Flange A
7 1/2
Specifications Size
3 inches
