3-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 4-20mA Output
3-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 4-20mA Output
SKU:LIN-1fd23a
Enhance equipment performance with this reliable linear potentiometer sensor featuring a 3-inch stroke, 27mm OD, and 4-20mA output.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 4-20mA Output
$49.99
Quantity: 1
Claim Your Seller Account
3-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 4-20mA Output
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

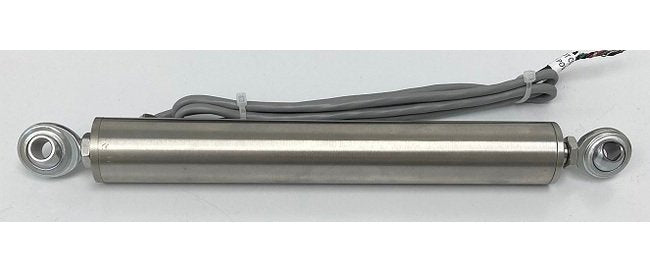

Upgrade your system with the Alliance Sensors Group Linear Potentiometer Replacement Sensor. This high-quality sensor features a 3-inch stroke, 27mm outside diameter, and 4 to 20 mA output current for precise measurements. With a stainless steel body, radial cable type, and CE approval, it ensures durability and compliance. Ideal for industrial applications requiring <0.25% linearity and 0.025% resolution, this sensor offers superior performance in a wide temperature range (-20 to 85 ºC). Enhance your equipment with this reliable sensor today.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
3 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
3 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
