3 Inch Tee Type Strainer for Foreign Particle Removal
3 Inch Tee Type Strainer for Foreign Particle Removal
SKU:TEM-639d79
Custom fabricated 3 Inch Tee Type Strainer for efficient pipeline protection and equipment safeguarding.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
3 Inch Tee Type Strainer for Foreign Particle Removal
$699.99
Quantity: 1
Claim Your Seller Account
3 Inch Tee Type Strainer for Foreign Particle Removal
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

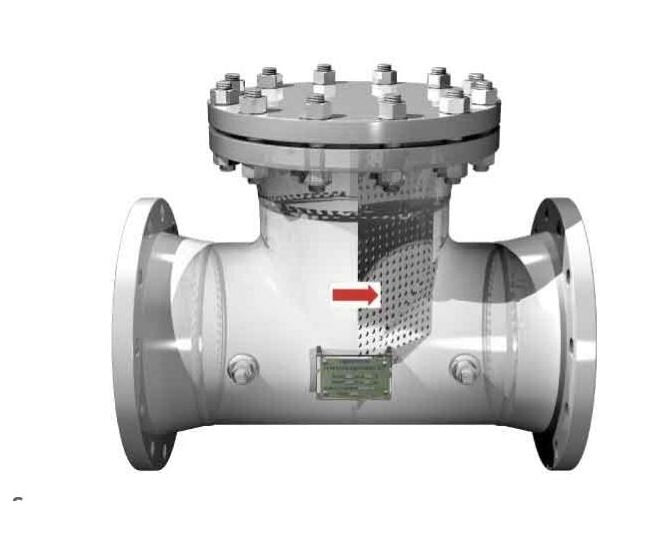

The 3 Inch Tee Type Strainer is a custom fabricated compact strainer specifically designed for the removal of foreign particles from pipelines, ensuring enhanced protection for pumps, valves, and associated equipment. Constructed from durable carbon or stainless steel material, this strainer can be tailored to meet your exact specifications. Optional materials, end connections, and accessories are available upon request. With its precise engineering, this Tee Type Strainer delivers reliable performance in demanding industrial environments.
Product Specifications
Additional Information Additional Information

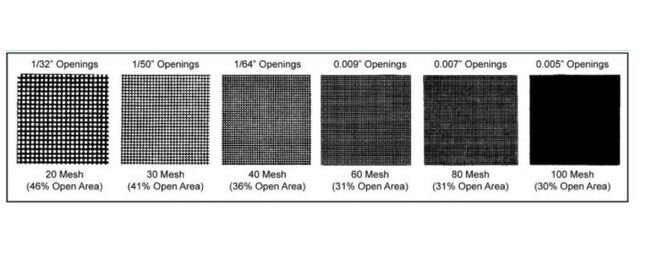

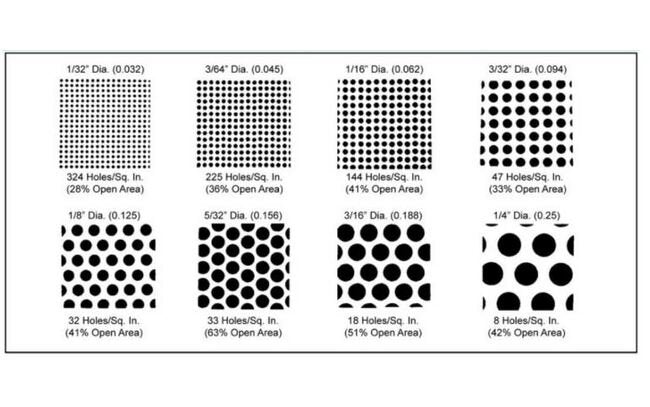

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

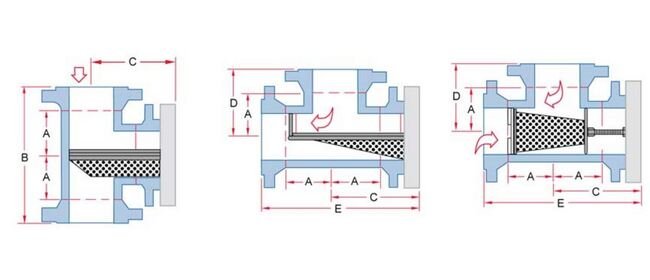

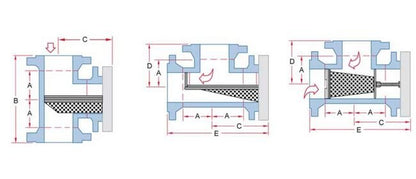

Dimensions Dimension A
3 3/8 in
Dimensions Dimension B For American Society Of Mechanical Engine
16 1/2 in
Dimensions Dimension C For American Society Of Mechanical Engine
10 1/2 in
Dimensions Dimension D For American Society Of Mechanical Engine
8 1/4 in
Dimensions Dimension E For American Society Of Mechanical Engine
18 3/4 in
Dimensions Pipe Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
