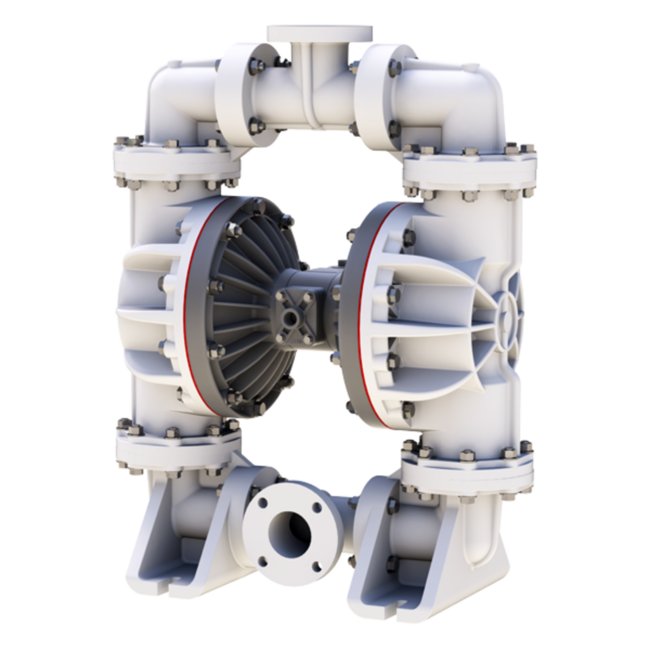

3 Inch Top Discharge Non-Metallic Ball Valve Diaphragm Pump

Name: 3 Inch Top Discharge Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-7ade7a
Price: 2899.99 USD
Availability: OutOfStock

SKU:PRO-7ade7a

Reliable 3 Inch non-metallic diaphragm pump for corrosive fluids & suspended solids, ideal for wastewater applications.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3 Inch Top Discharge Non-Metallic Ball Valve Diaphragm Pump from the S30 product line is designed for handling highly corrosive fluids and suspended solids. Constructed with TPE and PTFE components, this pump is ideal for intermittent, portable applications. With a max flow rate of 280 gpm and durable construction, it provides reliable performance for wastewater and utility pumping needs.

Product Specifications

Curves 0

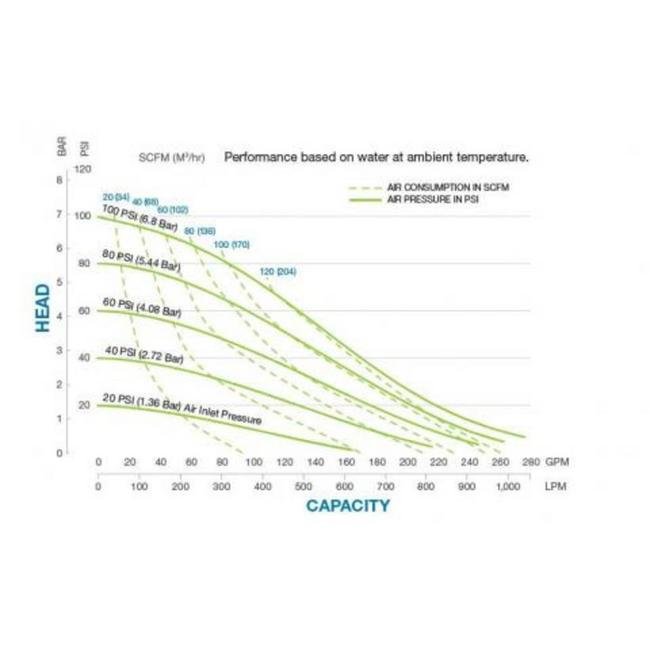

Performance Curves

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Height

3.39 ft | 41 in | 1.0328 m | 1032.76 mm

Specifications Inlet Size

3 ANSI in | 76 ANSI mm

Specifications Length

32 in | 820.67 mm

Specifications Max Flow Rate

280 gpm | 16800.00 gph | 1059.92 lpm | 63594.92 lph

Specifications Sku

WRS30B3P1PPAS000SP

Specifications Weight

231 lbs | 104.78 kg

Specifications Width

16 in | 411.23 mm

Category 6

Standard Duty Diaphragm Pumps

3 Inch Top Discharge Non-Metallic Ball Valve Diaphragm Pump
