3 Inch Top Discharge Non-Metallic Ball Valve Diaphragm Pump

Name: 3 Inch Top Discharge Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-8bdd81
Price: 2899.99 USD
Availability: OutOfStock

SKU:PRO-8bdd81

Highly corrosive fluid handling made easy with the 3 Inch Top Discharge Non-Metallic Ball Valve Pump.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

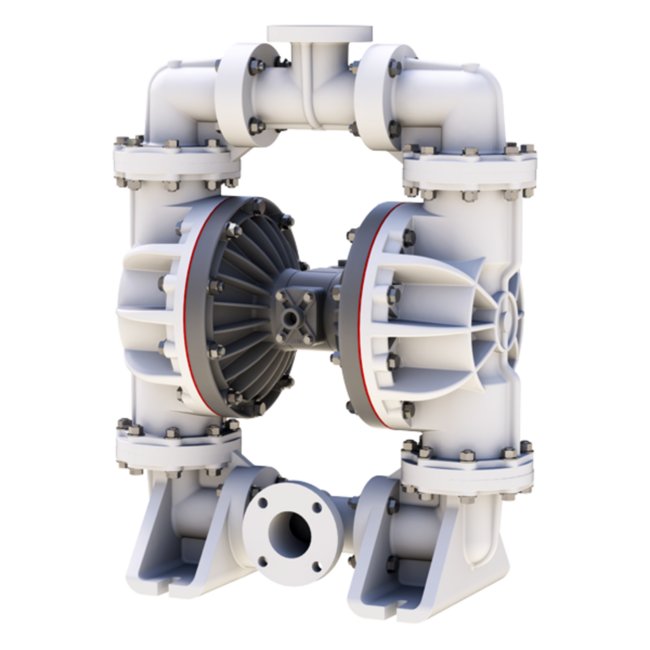

The S30 Non-Metallic Ball Valve Diaphragm Pump with a 3-inch ANSI inlet/outlet is designed for highly corrosive fluids. Constructed with TPE and PTFE diaphragms and check valves, this pump is perfect for intermittent, portable, and low abrasive fluid applications. With a maximum flow rate of 280 gpm, it offers reliable performance for waste water handling.

Product Specifications

Curves 0

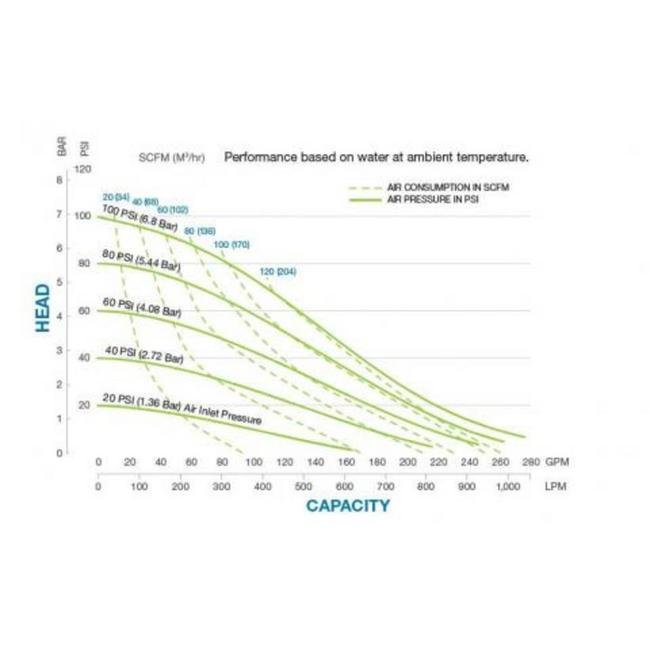

Performance Curves

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Height

3.39 ft | 41 in | 1.0328 m | 1032.76 mm

Specifications Inlet Size

3 ANSI in | 76 ANSI mm

Specifications Length

32 in | 820.67 mm

Specifications Max Flow Rate

280 gpm | 16800.00 gph | 1059.92 lpm | 63594.92 lph

Specifications Sku

WRS30B3P2PPAS000SP

Specifications Weight

231 lbs | 104.78 kg

Specifications Width

16 in | 411.23 mm

Category 6

Standard Duty Diaphragm Pumps

3 Inch Top Discharge Non-Metallic Ball Valve Diaphragm Pump
