3 Inch Top Discharge Standard Duty Non-Metallic Ball Valve Pump - S30 Diaphragm Pump

Name: 3 Inch Top Discharge Standard Duty Non-Metallic Ball Valve Pump - S30 Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-d42c4f
Price: 2899.99 USD
Availability: OutOfStock

SKU:PRO-d42c4f

Reliable 3 Inch Top Discharge Non-Metallic Pump for corrosive fluids & waste water handling. Max 280 gpm flow rate.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

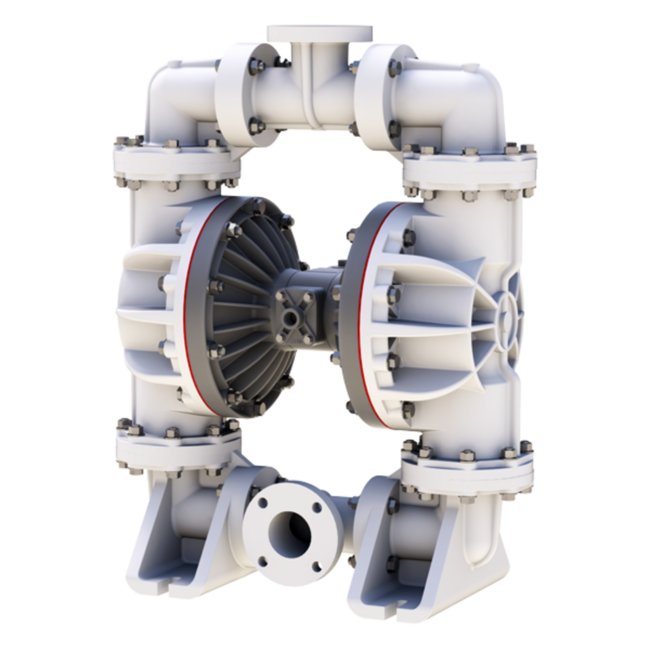

The 3 Inch Top Discharge S30 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids and low abrasive substances. With a 280 gpm max flow rate and TPE/PTFE construction, it's ideal for intermittent use. This pump offers reliability and durability for waste water applications.

Product Specifications

Curves 0

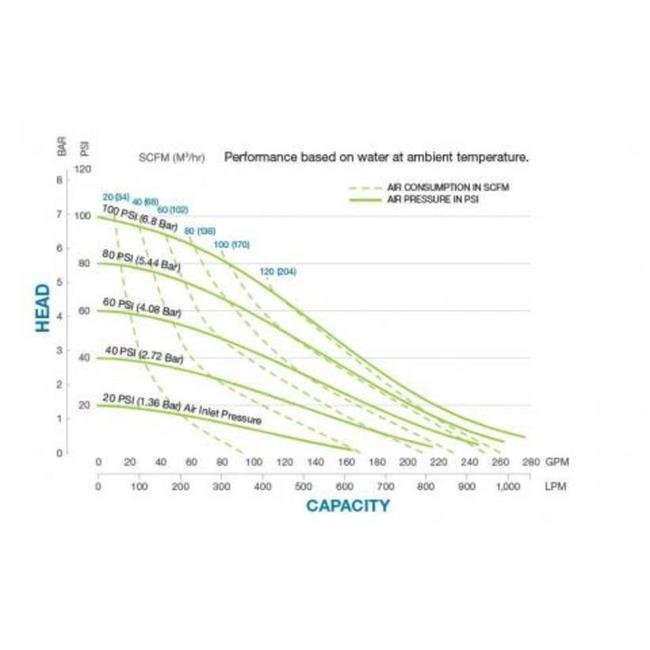

Performance Curves

Specifications Customs Code

HS Code 84131900ECCN Code 2B350.i

Specifications Height

3.39 ft | 41 in | 1.0328 m | 1032.76 mm

Specifications Inlet Size

3 ANSI in | 76 ANSI mm

Specifications Length

32 in | 820.67 mm

Specifications Max Flow Rate

280 gpm | 16800.00 gph | 1059.92 lpm | 63594.92 lph

Specifications Sku

WRS30B3K2KPAS000SP

Specifications Weight

315 lbs | 142.88 kg

Specifications Width

16 in | 411.23 mm

Category 6

Standard Duty Diaphragm Pumps
