3" IPS Aboveground Single Expansion Joint with O-Ring

Name: 3" IPS Aboveground Single Expansion Joint with O-Ring
Brand: Colonial Teltek
SKU: BRI-1239cd
Price: 49.99 USD
Availability: OutOfStock

SKU:BRI-1239cd

Durable 3" IPS Expansion Joint for bridge conduit systems. UL-compliant with easy installation.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

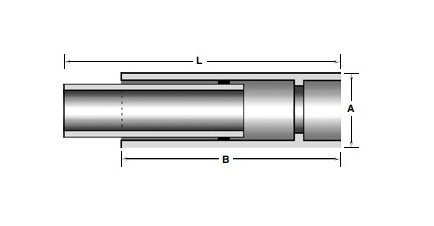

The 3 Inch Nominal Size Standard Wall Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring by Champion Fiberglass® offers a reliable solution for expansion needs in bridge conduit systems. With a durable black finish, this expansion joint meets Underwriters Laboratories (UL) standards. Featuring a 3" nominal size, and measuring A: 3.66 in, B: 12 in, and L: 15-23 in, it ensures flexibility within duct systems. Easy to install based on duct length, each joint is marked with a yellow line for precise installation.

Product Specifications

Dimesional Attributes A

3.66 in | 93 mm

Dimesional Attributes B

12 in | 305 mm

Dimesional Attributes L Max

23 in | 584 mm

Dimesional Attributes L Min

15 in | 381 mm

Dimesional Attributes Nominal Size

3 in

Features

Most Commonly used.

Installation Of Expansion Joints

When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart

Note

All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Style

Expansion

Specifications Type

Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.63 kg | 1.38 lb

3" IPS Aboveground Single Expansion Joint with O-Ring
