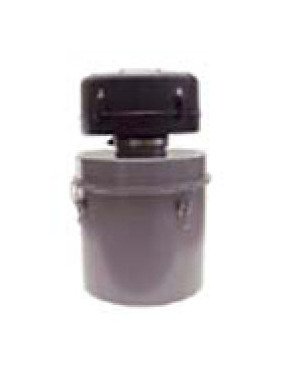

3" Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element

3" Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element

SKU:SPI-77a59c

Enhance filter life in high dust areas with the 3" Spinmeister Extreme Duty Inlet Air Filter, offering superior efficiency and durability.

Regular price $399.99
Regular price Sale price $399.99
Sale

Initiate Order

3" Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element

3" Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element

$399.99

Quantity: 1

Claim Your Seller Account

3" Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element

3" Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 3" Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element is designed for extreme dust environments, prolonging filter life significantly. With 85% efficiency at 15 microns or larger, this filter features a centrifugal flow that forces particulates through side louvers before being filtered by a 99%+ efficient pleated element. Constructed with durable molded fiber filled composite material, this product offers customizable configurations for specific applications, making it a versatile and reliable choice for industrial settings.

Product Specifications

Dimensions Dimension A
18-3/4 in
Dimensions Dimension B
3 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
31 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
3 in
Specifications Rated Flow
250 scfm
Specifications Type
C
