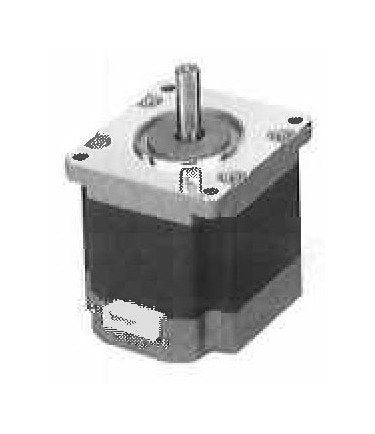

3 Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
3 Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
SKU:STE-9ed0cf
High torque, low vibration 3 Phase Hybrid Stepping Motor from KT Series. Ideal for precise motion control applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
3 Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
$129.99
Quantity: 1
Claim Your Seller Account
3 Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Phase Hybrid Stepping Motor from the KT Series offers high torque at low speeds, ultra-low vibration, and low noise thanks to its micro-step driver. With a simplified drive circuit utilizing star winding connection, this stepper motor allows for easy operation. Featuring a 1.2-degree step angle and NEMA 23 motor frame size, it provides precise and reliable performance. With attributes like holding torque of 85 oz·in, standard size of 60 x 58 mm, and operating temperature range of 0 to 50°C, this motor is ideal for various applications and is compliant with industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2038.jpg | a2075.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60LM1-551-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
3.8 A
Specifications Detent Torque
5.0 oz·in | 35 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
85 oz·in | 600 mN·m
Specifications Inductance2 Phase
1.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
265 g·cm² | 1.45 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 58 mm | 2.36 x 2.29 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
2.77 V
Specifications Weight
720 g | 1.6 lb
Specifications Winding Resistance2 Phase
0.73 Ω
Torque Curve 0
