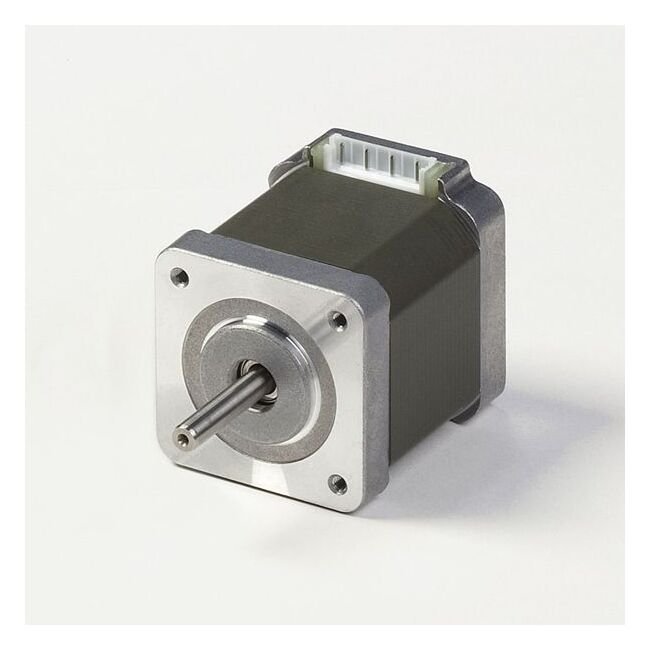

3 Phase Hybrid Stepping Motor NEMA 17 - KT Series
3 Phase Hybrid Stepping Motor NEMA 17 - KT Series
SKU:STE-d41286
High-performance 3 Phase Hybrid Stepping Motor for precise control and low vibration. Ideal for institutional use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3 Phase Hybrid Stepping Motor NEMA 17 - KT Series
$89.99
Quantity: 1
Claim Your Seller Account
3 Phase Hybrid Stepping Motor NEMA 17 - KT Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Phase Hybrid Stepping Motor in the KT Series offers exceptional performance with a star winding connection for simplified drive circuits. Featuring a 0.6 degree/step angle, this NEMA 17 motor delivers high torque at low speeds and ultra-low vibration and noise levels when paired with a micro-step driver. With a range of step angle options (1/1, 1/2, 1/4, or 1/8), this motor provides precise control and efficiency for a variety of applications. Ideal for institutional and government use due to its reliability and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2052.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42KM06-551-.jpg | KT42KM06-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.3 A
Specifications Detent Torque
1.3 oz·in | 9 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
28.3 oz·in | 200 mN·m
Specifications Inductance2 Phase
1.4 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
85 g·cm² | 0.46 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 48 mm | 1.65 x 1.89 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
4.60 V
Specifications Weight
360 g | 0.79 lb
Specifications Winding Resistance2 Phase
2.0 Ω
Torque Curve 0
KT42KM06-551 ST CURVE.jpg
