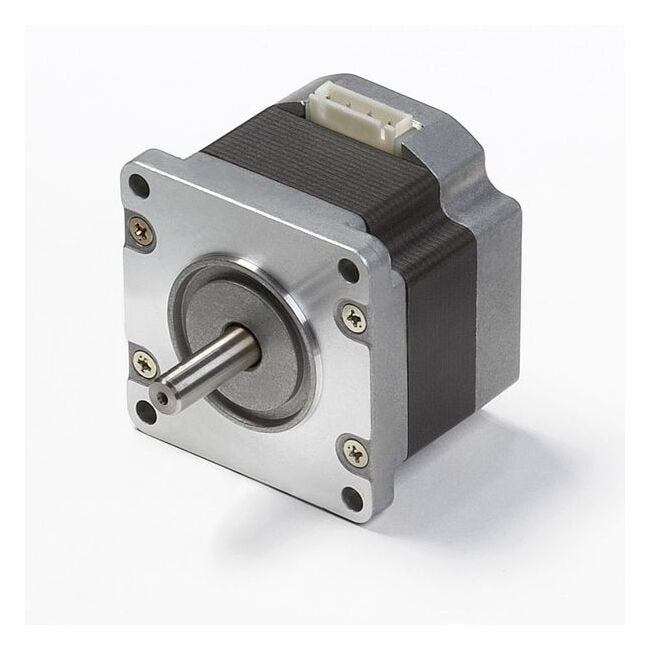

3 Phase Hybrid Stepping Motor Nema 17 - KT Series
3 Phase Hybrid Stepping Motor Nema 17 - KT Series
SKU:STE-fb4f7a
Efficient 3 Phase Hybrid Stepping Motor with low noise levels and high torque for precise motion control.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
3 Phase Hybrid Stepping Motor Nema 17 - KT Series
$69.99
Quantity: 1
Claim Your Seller Account
3 Phase Hybrid Stepping Motor Nema 17 - KT Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Phase Hybrid Stepping Motor, part of the KT Series, boasts a simplified drive circuit with star winding connection for enhanced efficiency. Operating at a low speed, this motor delivers high torque thanks to its micro-step driver, ensuring ultra-low vibration and noise levels. With motor step angle options of 1/1, 1/2, 1/4, or 1/8, this Nema 17 motor is designed for precision and reliability in various applications.
Product Specifications
Additional Information 0
a2061.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42HM4-552-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
0.8 A
Specifications Detent Torque
2.1 oz·in | 14.7 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
18 oz·in | 130 mN·m
Specifications Inductance2 Phase
12.3 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
38 g·cm² | 0.21 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 34 mm | 1.65 x 1.34 in.
Specifications Step Angle
3.75 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
7.04 V
Specifications Weight
210 g | 0.46 lb
Specifications Winding Resistance2 Phase
8.8 Ω
Torque Curve 0
