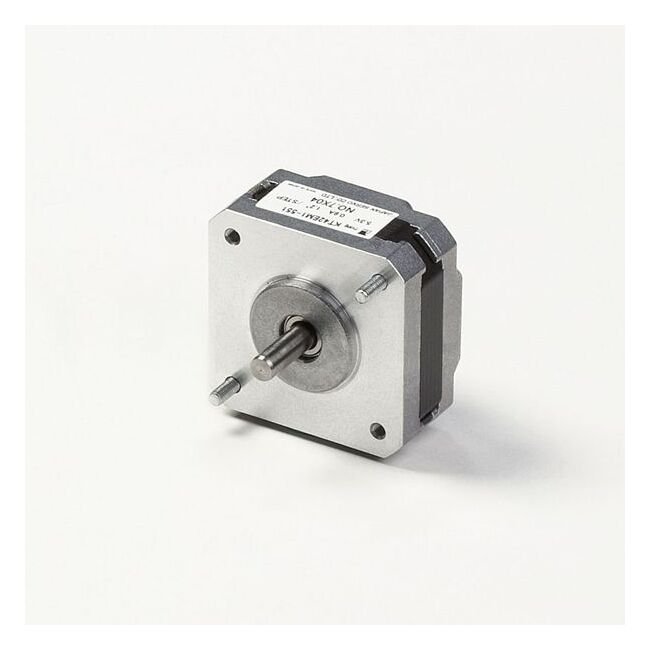

3 Phase Hybrid Stepping Motor - Nema 17, KT Series (1.2 Degree/Step)
3 Phase Hybrid Stepping Motor - Nema 17, KT Series (1.2 Degree/Step)
SKU:STE-054437
Experience high torque, low vibration, and quiet operation with our 3 Phase Hybrid Stepping Motor (1.2 Degree/Step) - Nema 17 from the KT Series.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3 Phase Hybrid Stepping Motor - Nema 17, KT Series (1.2 Degree/Step)
$49.99
Quantity: 1
Claim Your Seller Account
3 Phase Hybrid Stepping Motor - Nema 17, KT Series (1.2 Degree/Step)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Phase Hybrid Stepping Motor in the KT Series offers a simplified drive circuit with a star winding connection, providing high torque at low speeds through a micro-step driver. Achieve ultra-low vibration and noise levels with our advanced driver technology. Select your desired motor step angle from 1/1, 1/2, 1/4, or 1/8. With NEMA 17 frame size, this motor guarantees superior performance and reliability for various applications.
Product Specifications
Additional Information 0
a2057.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42EM1-551 VIBRATION.jpg | KT42EM1-551.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
0.9 A
Specifications Detent Torque
1.4 oz·in | 10 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
9.9 oz·in | 70 mN·m
Specifications Inductance2 Phase
2.6 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
20 g·cm² | 0.11 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 21 mm | 1.65 x 0.8 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
5.3 V
Specifications Weight
140 g | 0.31 lb
Specifications Winding Resistance2 Phase
5.9 Ω
Torque Curve 0
KT42EM1-551 ST CURVE.jpg
