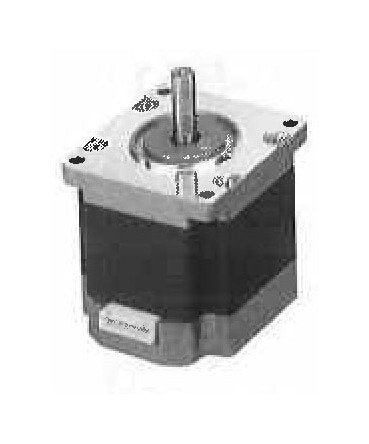

3 Phase Hybrid Stepping Motor - NEMA 23 (0.6 Degree/Step)
3 Phase Hybrid Stepping Motor - NEMA 23 (0.6 Degree/Step)
SKU:STE-f6b874
High torque, low noise 3 Phase Hybrid Stepping Motor with NEMA 23 frame size and versatile step angle selection for precision control.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
3 Phase Hybrid Stepping Motor - NEMA 23 (0.6 Degree/Step)
$99.99
Quantity: 1
Claim Your Seller Account
3 Phase Hybrid Stepping Motor - NEMA 23 (0.6 Degree/Step)
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3 Phase Hybrid Stepping Motor is a powerhouse of efficiency and precision. Featuring a simplified drive circuit with star winding connection and micro-step driver, it delivers high torque at low speeds while maintaining ultra-low vibration and noise levels. With selectable step angles of 1/1, 1/2, 1/4, or 1/8, this motor offers versatility and reliability for a wide range of applications. With a NEMA 23 frame size and compliant with JIS Class E and UL Class B insulation standards, this motor ensures high performance and safety in every operation.
Product Specifications
Additional Information 0
a2036.jpg | a2071.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60LM06-552 VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.2 A
Specifications Detent Torque
3.5 oz·in | 25 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
125 oz·in | 900 mN·m
Specifications Inductance2 Phase
5.6 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
265 g·cm² | 1.45 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 58 mm | 2.36 x 2.29 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
4.84 V
Specifications Weight
720 g | 1.6 lb
Specifications Winding Resistance2 Phase
2.2 Ω
Torque Curve 0
KT60LM06-552 ST CURVE.jpg
