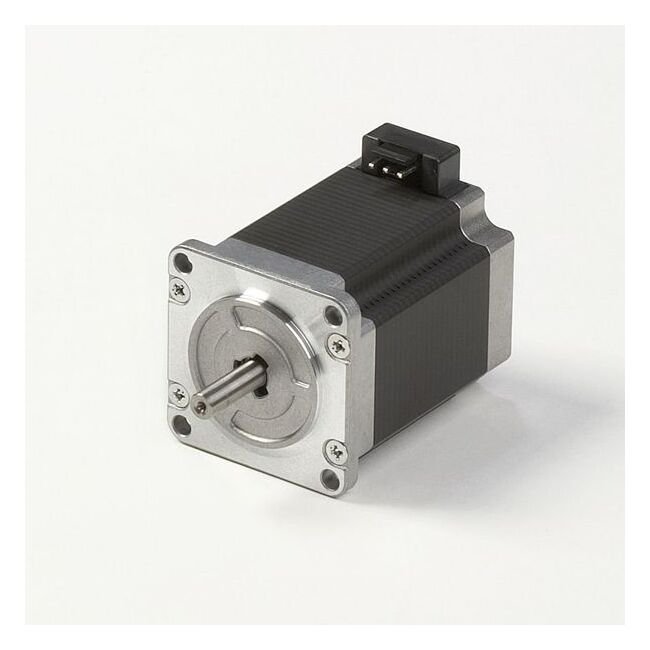

3 Phase Hybrid Stepping Motor - NEMA 23, 1.2 Degree/Step
3 Phase Hybrid Stepping Motor - NEMA 23, 1.2 Degree/Step
SKU:STE-5b4533
Enhanced KT Series 3-Phase Hybrid Stepping Motor - High torque, low vibration, precision performance
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
3 Phase Hybrid Stepping Motor - NEMA 23, 1.2 Degree/Step
$99.99
Quantity: 1
Claim Your Seller Account
3 Phase Hybrid Stepping Motor - NEMA 23, 1.2 Degree/Step
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-Phase Hybrid Stepping Motor offers a simplified drive circuit with star winding connection, delivering high torque at low speeds through micro-step drivers. Its ultra-low vibration and noise levels make it ideal for precision applications. With step angle selection options of 1/1, 1/2, 1/4, or 1/8, this motor provides reliable performance and exceptional holding torque of 82.1 oz·in. Suitable for diverse industrial settings, this motor excels in accuracy and efficiency, meeting the demanding standards of institutional buyers.
Product Specifications
Additional Information 0
a2064.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT50LM1-551-.jpg | KT50LM1-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
80 ºK
Specifications Current Per 2 Phase
3.0 A
Specifications Detent Torque
5.7 oz·in | 40 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
82.1 oz·in | 580 mN·m
Specifications Inductance2 Phase
1.6 mH
Specifications Insulation Class
Jis Class E (30ºC/266ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
170 g·cm² | 0.93 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
50 x 65 mm | 1.97 x 2.56 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
4.8 V
Specifications Weight
650 g | 1.4 lb
Specifications Winding Resistance2 Phase
1.6 Ω
Torque Curve 0
