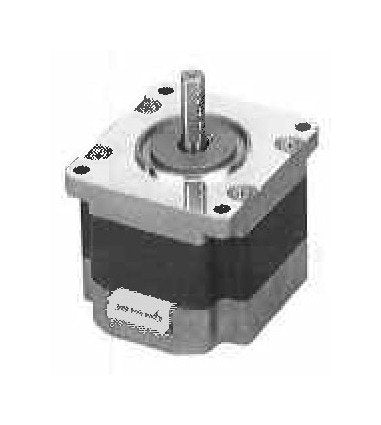

3 Phase Hybrid Stepping Motor - NEMA 23 (KT Series, 0.6 Degree/Step)
3 Phase Hybrid Stepping Motor - NEMA 23 (KT Series, 0.6 Degree/Step)
SKU:STE-60103c
High-performance 3 Phase Hybrid Stepping Motor - NEMA 23. Optimal torque & precision. Customizable steps. Jis Class E insulation.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
3 Phase Hybrid Stepping Motor - NEMA 23 (KT Series, 0.6 Degree/Step)
$79.99
Quantity: 1
Claim Your Seller Account
3 Phase Hybrid Stepping Motor - NEMA 23 (KT Series, 0.6 Degree/Step)
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Phase Hybrid Stepping Motor from the KT Series offers unparalleled performance and precision. Featuring a star winding connection for simplified drive circuits, this motor delivers high torque at low speeds with the micro-step driver. Benefit from ultra-low vibration, low noise operation, and customizable step angles (1/1, 1/2, 1/4, or 1/8). With NEMA 23 frame size and compliance with Jis Class E insulation standards, this motor ensures reliable operation and exceptional performance in various applications.
Product Specifications
Additional Information 0
a2035.jpg | a2069.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60KM06-752 VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.2 A
Specifications Detent Torque
1.4 oz·in | 10 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
42 oz·in | 300 mN·m
Specifications Inductance2 Phase
3.10 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
170 g·cm² | 0.93 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 47 mm | 2.36 x 1.85 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
3.52 V
Specifications Weight
550 g | 1.2 lb
Specifications Winding Resistance2 Phase
1.6 Ω
Torque Curve 0
KT60KM06-752 ST CURVE.jpg
