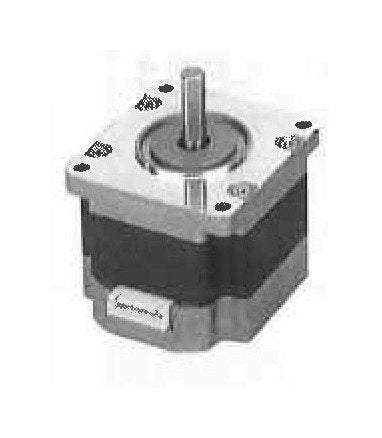

3 Phase KT Series Hybrid Stepping Motor - 1.2 Degree/Step
3 Phase KT Series Hybrid Stepping Motor - 1.2 Degree/Step
SKU:STE-4c3a28
High-torque 3 Phase Hybrid Stepping Motor with 1.2° step angle, low vibration, and compliance with industry standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
3 Phase KT Series Hybrid Stepping Motor - 1.2 Degree/Step
$129.99
Quantity: 1
Claim Your Seller Account
3 Phase KT Series Hybrid Stepping Motor - 1.2 Degree/Step
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Phase KT Series Hybrid Stepping Motor is designed to deliver high torque at low speeds with ultra-low vibration and noise. Featuring a step angle of 1.2 degrees/step, this motor offers exceptional precision and performance. With a NEMA 23 motor frame size, holding torque of 45.3 oz·in, and compliance with Jis Class E and UL Class B insulation standards, it ensures reliable operation in various industrial applications.
Product Specifications
Additional Information 0
a2037.jpg | a2073.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60KM1-552-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.2 A
Specifications Detent Torque
2.6 oz·in | 18 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
45.3 oz·in | 320 mN·m
Specifications Inductance2 Phase
2.5 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
170 g·cm² | 0.93 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 47 mm | 2.36 x 1.85 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
3.52 V
Specifications Weight
550 g | 1.2 lb
Specifications Winding Resistance2 Phase
1.6 Ω
Torque Curve 0
