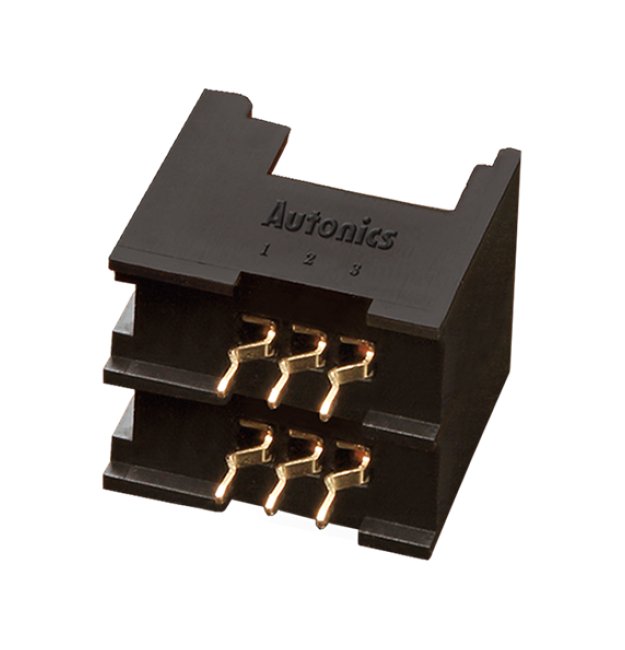

3-Pin Board Mount Socket Connector
3-Pin Board Mount Socket Connector
SKU:PRO-05db75
High-quality 3-Pin Board Mount Socket Connector for reliable performance in electronic systems.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
3-Pin Board Mount Socket Connector
$2.10
Quantity: 1
Claim Your Seller Account
3-Pin Board Mount Socket Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3-Pin Board Mount Socket Connector is a high-quality sensor connector designed for seamless integration into electronic systems. With a maximum AC/DC voltage of ~250V and a maximum rated current of 3.0A, this connector ensures reliable performance. It features a durable body made of Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) meeting UL94V-0 standards, with C5210 gold-plated terminals for enhanced conductivity. The connector is ideal for applications requiring precision and stability, with features like minimum terminal retention of 1.4 kgf and compatibility with 1.0 to 2.2mm PCB thickness.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Connector Type
Board Mount Socket
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Number Of Lines
2
Specifications Number Of Pins
3
Specifications Printed Circuit Board Pcb
Fender Plated-Through Hole
Specifications Printed Circuit Board Pcb Hole Diameter
1 mm
Specifications Printed Circuit Board Pcb Thickness
1.0 to 2.2 mm
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
