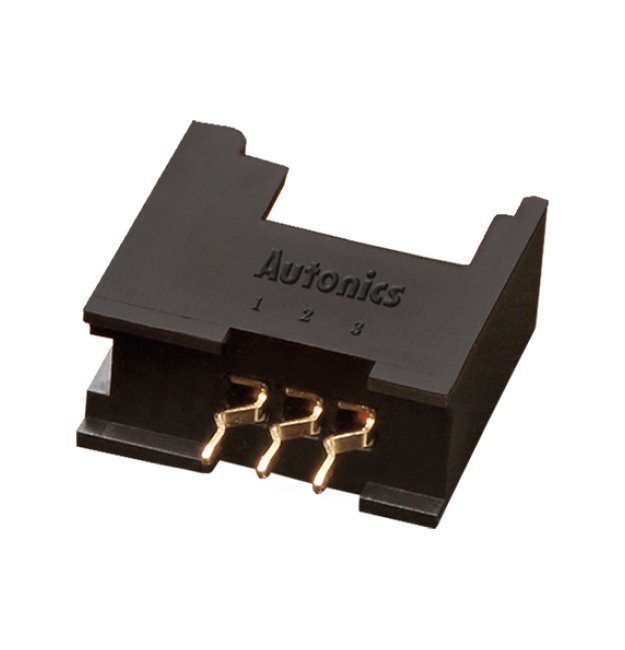

3-Pin Board Mount Socket Connector
3-Pin Board Mount Socket Connector
SKU:PRO-09a81f
Reliable 3-pin Board Mount Socket Connector for secure and efficient connections on Printed Circuit Boards. Maximum Current: 3.0A, Voltage: ~250V.
Regular price
$1.60
Regular price
Sale price
$1.60
Unit price
per
Initiate Order
3-Pin Board Mount Socket Connector
$1.60
Quantity: 1
Claim Your Seller Account
3-Pin Board Mount Socket Connector
$1.60
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your connectivity needs with our high-quality 3-pin Board Mount Socket Connector. It features a terminal material of C5210 with Gold plating, ensuring reliable performance. The body material is made of Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) meeting UL94V-0 standards. This Sensor Connector can handle a Maximum Rated Current of 3.0 A and a Maximum Alternating Current (AC)/Direct Current (DC) Voltage of ~250 V. Designed for durability, it offers Minimum Terminal Retention of 1.4 kgf, ensuring secure connections on Printed Circuit Boards (PCBs) with a thickness of 1.0 to 2.2 mm.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Connector Type
Board Mount Socket
Specifications List Price
1.60 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Number Of Lines
1
Specifications Number Of Pins
3
Specifications Printed Circuit Board Pcb
Fender Plated-Through Hole
Specifications Printed Circuit Board Pcb Hole Diameter
1 mm
Specifications Printed Circuit Board Pcb Thickness
1.0 to 2.2 mm
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
