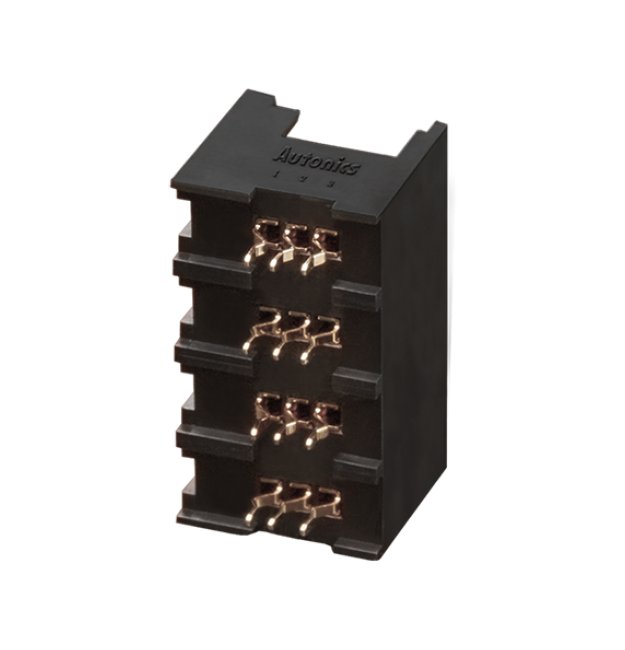

3-Pin Sensor Connector Board Mount Socket
3-Pin Sensor Connector Board Mount Socket
SKU:PRO-e09259
Reliable 3-Pin Sensor Connector for secure board mounting.
Regular price
$2.90
Regular price
Sale price
$2.90
Unit price
per
Initiate Order
3-Pin Sensor Connector Board Mount Socket
$2.90
Quantity: 1
Claim Your Seller Account
3-Pin Sensor Connector Board Mount Socket
$2.90
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3-Pin Sensor Connector Board Mount Socket is a high-quality connectivity solution designed for precision performance. With a maximum AC/DC voltage of ~250V and a maximum rated current of 3.0A, this sensor connector ensures reliable power supply. The terminal material, C5210 with Gold plating, and Polycarbonate/ABS body material guarantee durability and efficient signal transmission. Featuring 4 lines and Fender Plated-Through Hole PCB, this connector offers secure connections on printed circuit boards. Measuring 1mm in PCB hole diameter and weighing just 0.56 lb, it is lightweight yet sturdy, making it ideal for varied applications.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Connector Type
Board Mount Socket
Specifications List Price
2.90 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Number Of Lines
4
Specifications Number Of Pins
3
Specifications Printed Circuit Board Pcb
Fender Plated-Through Hole
Specifications Printed Circuit Board Pcb Hole Diameter
1 mm
Specifications Printed Circuit Board Pcb Thickness
1.0 to 2.2 mm
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
