3-Pin Wire Mount Plug Connector for Sensor Applications
3-Pin Wire Mount Plug Connector for Sensor Applications
SKU:PRO-48bb51
Enhance sensor connectivity with our durable 3-pin wire mount plug connector, ideal for institutional and government projects.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
3-Pin Wire Mount Plug Connector for Sensor Applications
$2.10
Quantity: 1
Claim Your Seller Account
3-Pin Wire Mount Plug Connector for Sensor Applications
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

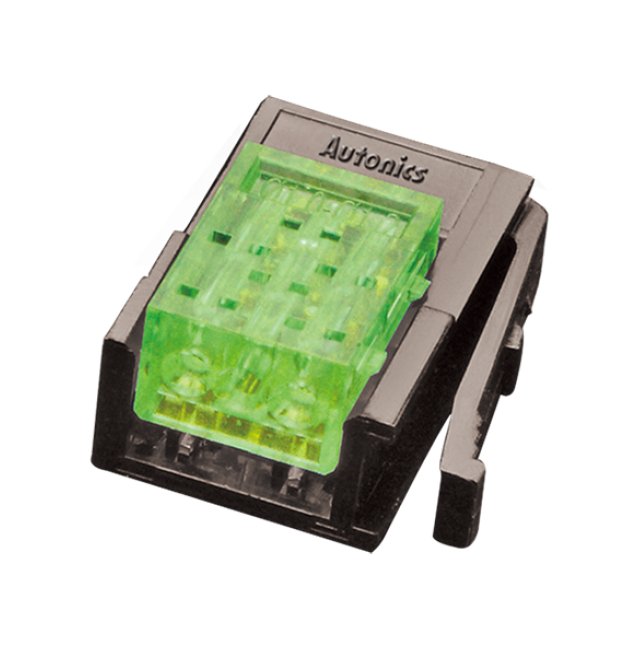

Experience premium connectivity with our 3-pin wire mount plug connector designed for sensor applications. This connector features a durable Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) body and C5210 gold-plated terminals, ensuring reliable performance under varying conditions. With a maximum rated current of 3.0 A and compliance with UL94-V0 standards, this connector offers secure and efficient sensor connectivity for your projects. Compatible with 30-28 AWG wires, this connector provides easy installation and a secure hold, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Yellow-Green
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Yellow-Green
Specifications Cover Diameter
0.8 to 1.0 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.05 to 0.08 mm²
Specifications Number Of Pins
3
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.04 lb
Specifications Wire Cross Sectional Area
0.05 to 0.08 mm²
Specifications Wire Size
30-28 AWG
