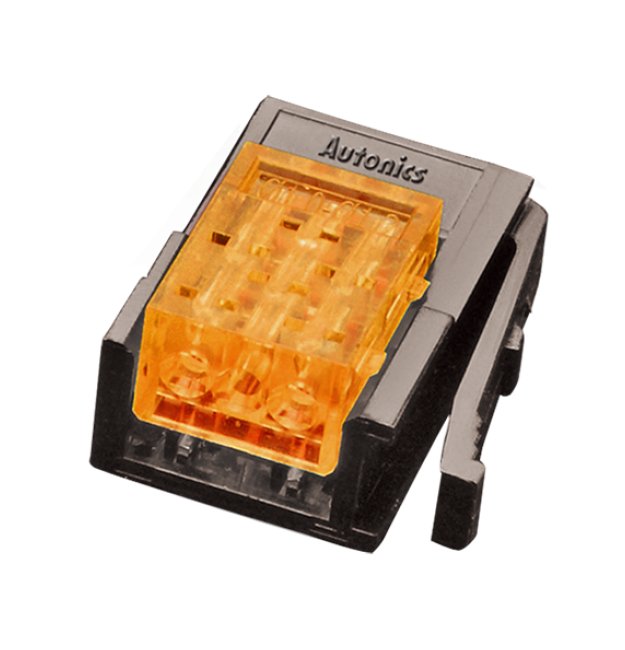

3-Pin Wire Mount Plug Connector - Orange, AWG 24-26
3-Pin Wire Mount Plug Connector - Orange, AWG 24-26
SKU:PRO-0147c0
Reliable 3-Pin Wire Mount Plug Connector in Orange, AWG 24-26, for secure and efficient electrical connections.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
3-Pin Wire Mount Plug Connector - Orange, AWG 24-26
$2.10
Quantity: 1
Claim Your Seller Account
3-Pin Wire Mount Plug Connector - Orange, AWG 24-26
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3-Pin Wire Mount Plug Connector in vibrant Orange color is a reliable solution for your connectivity needs. Constructed with Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) and featuring a Terminal Material of C5210 (Gold 0.2 μm), this Sensor Connector ensures durability and efficient electrical connections. With a Maximum Rated Current of 3.0 A and a Maximum Alternating Current (AC)/Direct Current (DC) Voltage of ~250 V, it meets the highest industry standards for performance and safety. Suitable for wire sizes ranging from 26 to 24 AWG, this Connector is designed for easy installation and secure terminal retention.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Orange
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Orange
Specifications Cover Diameter
1.2 to 1.6 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
3
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
