3 Poles Light Blue Male Connector - 20A Pluggable Electrical Connector
3 Poles Light Blue Male Connector - 20A Pluggable Electrical Connector
SKU:CIR-c09a97
High-quality 3 Poles Light Blue Male Connector suitable for outdoor use, offers reliable performance & durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3 Poles Light Blue Male Connector - 20A Pluggable Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
3 Poles Light Blue Male Connector - 20A Pluggable Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

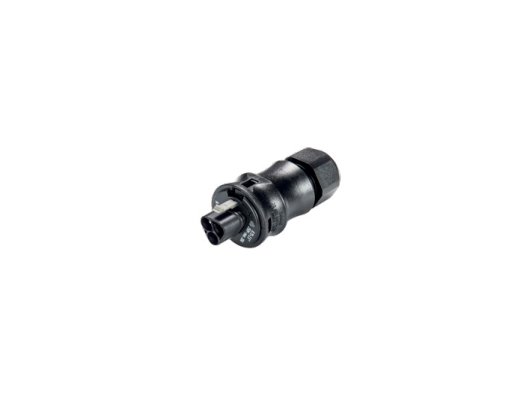

The 3 Poles Light Blue Male Connector is a high-quality pluggable electrical connector suitable for outdoor use. Manufactured by Wieland, this male connector features a straight angle plug with a spring clamp connection. With a rated current of 20A and a wide range of compatibility with various wire sizes, this connector offers reliable performance. It meets IP69 and Type 4X / 6P protection standards, ensuring durability in harsh environments. Suitable for cables ranging from 6mm to 10mm in diameter, this connector is a dependable choice for outdoor electrical applications.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Light Blue
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
3
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
