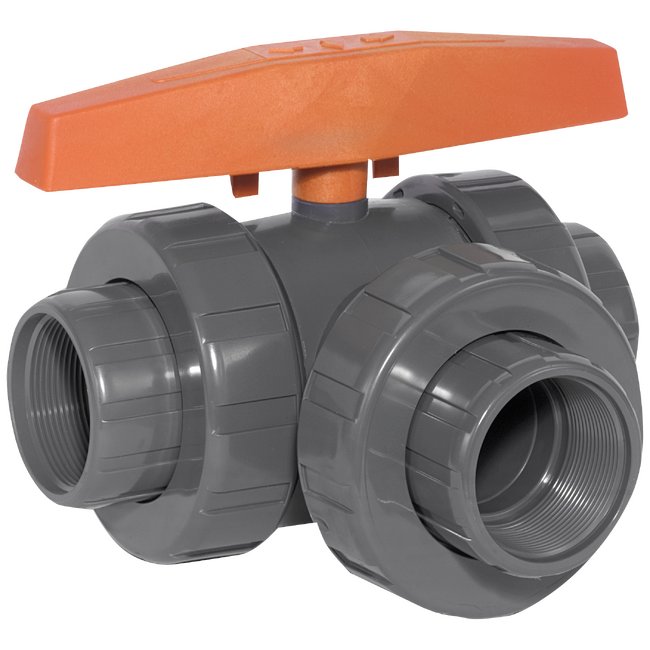

3" PVC 3-Way Lateral True Union Ball Valve with FPM O-Rings, Threaded End Connections
3" PVC 3-Way Lateral True Union Ball Valve with FPM O-Rings, Threaded End Connections
SKU:TRU-50af81
Versatile 3" PVC 3-Way True Union Ball Valve with FPM O-Rings & Threaded Connections, optimal for flow diversion @ 150PSI
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
3" PVC 3-Way Lateral True Union Ball Valve with FPM O-Rings, Threaded End Connections
$79.99
Quantity: 1
Claim Your Seller Account
3" PVC 3-Way Lateral True Union Ball Valve with FPM O-Rings, Threaded End Connections
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3" PVC 3-Way Lateral True Union Ball Valve from the LA Series offers exceptional versatility, allowing seamless flow diversion from the center port to the left or right ports with no OFF position, rated @ 150PSI. Constructed with durable PVC, equipped with reliable FPM o-rings, and featuring threaded end connections, this valve ensures efficient operation and long-lasting performance. With precise dimensions meeting industry standards and a Cv Factor of 190, this valve is ideal for a wide range of applications in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
6.40 in | 162.56 mm
Specifications B
5.90 in | 149.86 mm
Specifications Body Material
PVC
Specifications C
7.59 in | 192.79 mm
Specifications Cv Factor
190
Specifications E
10.50 in | 266.70 mm
Specifications End Connection
Threaded
Specifications F
8.72 in | 221.49 mm
Specifications G
16.00 in | 406.40 mm
Specifications H
5.35 in | 135.89 mm
Specifications Seals
FPM
Specifications Size
3"
