3" PVC 3-Way Lateral Union Ball Valve w/ EPDM O-Rings, Threaded End Connections
3" PVC 3-Way Lateral Union Ball Valve w/ EPDM O-Rings, Threaded End Connections
SKU:TRU-b1b8dc
Efficiently divert flow with our 3" PVC 3-Way Lateral Ball Valve w/ Threaded Connections. Durable PVC body with EPDM seals, rated @150PSI. Ideal for diverse applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
3" PVC 3-Way Lateral Union Ball Valve w/ EPDM O-Rings, Threaded End Connections
$59.99
Quantity: 1
Claim Your Seller Account
3" PVC 3-Way Lateral Union Ball Valve w/ EPDM O-Rings, Threaded End Connections
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

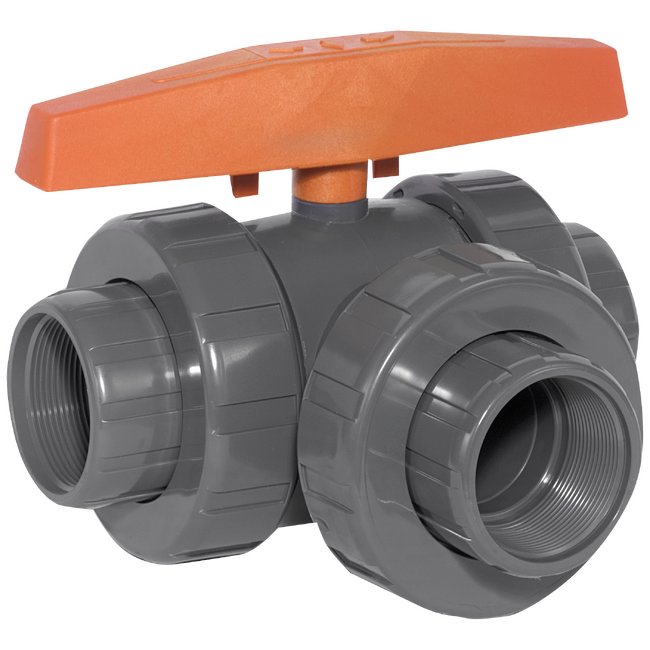

The 3" PVC 3-Way Lateral True Union Ball Valves from our LA Series offer efficient flow diversion from the center port to the left or right ports, eliminating the OFF position. With a body material of PVC and EPDM seals, these valves are designed for durability and reliability. The threaded end connections ensure easy installation. Rated at 150PSI, these valves meet institutional standards for performance and quality, making them ideal for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
6.40 in | 162.56 mm
Specifications B
5.90 in | 149.86 mm
Specifications Body Material
PVC
Specifications C
7.59 in | 192.79 mm
Specifications Cv Factor
190
Specifications E
10.50 in | 266.70 mm
Specifications End Connection
Threaded
Specifications F
8.72 in | 221.49 mm
Specifications G
16.00 in | 406.40 mm
Specifications H
5.35 in | 135.89 mm
Specifications Seals
EPDM
Specifications Size
3"
