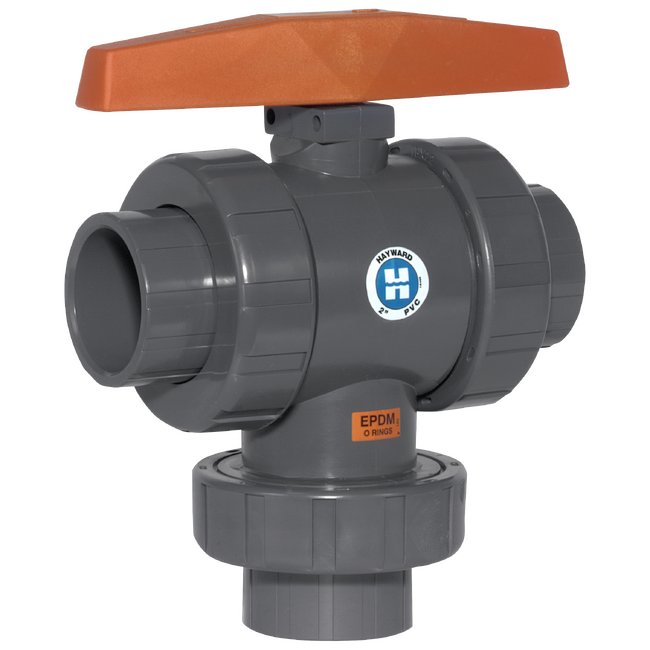

3" PVC 3-Way True Union Ball Valves with Flanged End Connections

Name: 3" PVC 3-Way True Union Ball Valves with Flanged End Connections
Brand: Hayward Flow Control
SKU: TRU-12592b
Price: 59.99 USD
Availability: OutOfStock

SKU:TRU-12592b

3" PVC 3-Way True Union Ball Valves for precise flow control with PVC body, FPM seals, and flanged connections. Reliable performance @ 150PSI.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3" PVC 3-Way True Union Ball Valves with FPM o-rings and flanged end connections from our TW Series offer exceptional versatility and durability. Designed for seamless flow control, these valves are rated @ 150PSI, ensuring reliable performance. With precise dimensions and a Cv Factor of 190, they provide efficient operation in a range of applications. The PVC body and FPM seals guarantee long-lasting resilience, while the convenient flanged end connections simplify installation and maintenance. Whether for consumer or institutional use, these valves meet the highest standards of quality and functionality.

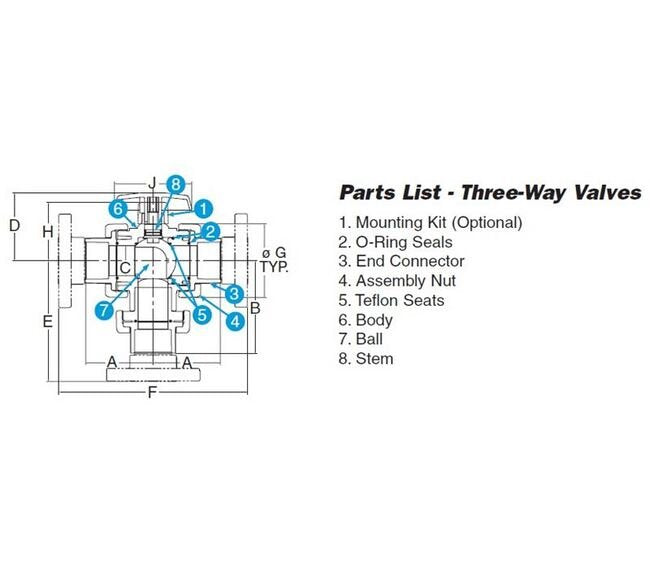

Product Specifications

Specifications A

5.96 in | 151.38 mm

Specifications B

7.59 in | 192.79 mm

Specifications Body Material

PVC

Specifications C

3.00 in | 76.20 mm

Specifications Cv Factor

190

Specifications D

7.02 in | 178.31 mm

Specifications E

8.72 in | 221.49 mm

Specifications End Connection

Flanged

Specifications F

16.00 in | 406.40 mm

Specifications G

6.40 in | 162.56 mm

Specifications H

5.88 in | 149.35 mm

Specifications J

10.50 in | 266.70 mm

Specifications Seals

FPM

Specifications Size

3" PVC 3-Way True Union Ball Valves with Flanged End Connections
