3 Series Edge Board Mount with .187 Chassis Hole

Name: 3 Series Edge Board Mount with .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-cfcc0c
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-cfcc0c

Securely mount this Edge Board solution with .187 Chassis Hole for reliable circuit board support. RoHS compliant and durable.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

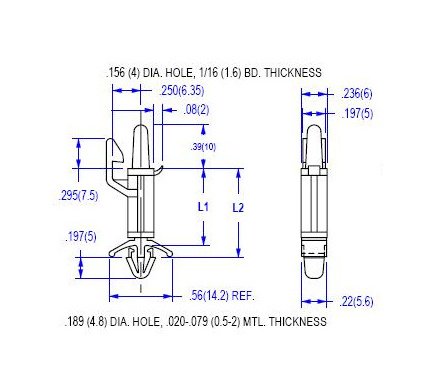

The 03 Series Edge Board Mount with .187 Chassis Hole is designed for easy, secure installation by hand, locking firmly to the PC board edge. Made from durable Nylon 66 UL94V-2 material (UL94V-0 available), this product meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F, it offers reliability in various environments. Its white color and precise dimensions make it suitable for circuit board supports, with panel and chassis thickness specifications ensuring optimal performance.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L1

.626 (15.9) inches (mm)

Specifications Dim L2

.717 (18.2) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 (1.6) inches (mm)
