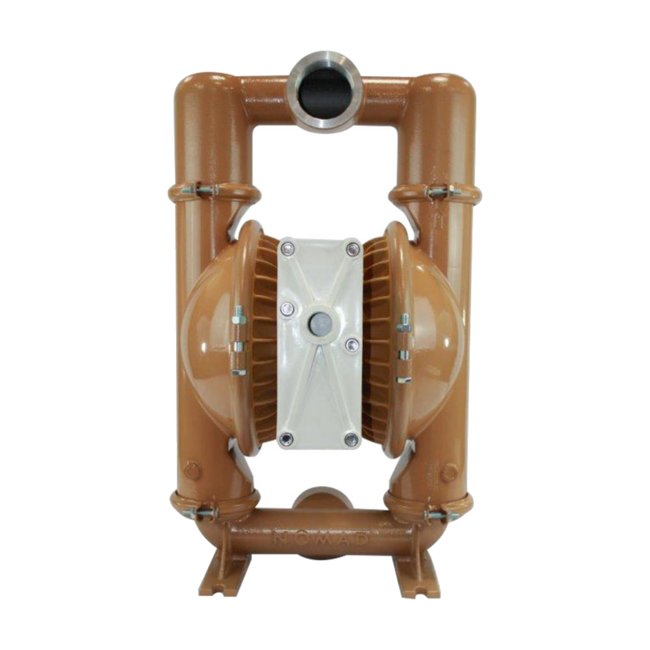

3" Stainless Steel Flanged PWR-FLO⢠AODD Pump with Nordel/EPDM Diaphragm
3" Stainless Steel Flanged PWR-FLO⢠AODD Pump with Nordel/EPDM Diaphragm
SKU:MAN-e2e62f
Efficient 3" Stainless Steel Pump with Nordel/EPDM Diaphragm for industrial use. Durable, reliable, and compliant.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
3" Stainless Steel Flanged PWR-FLO⢠AODD Pump with Nordel/EPDM Diaphragm
$1,899.99
Quantity: 1
Claim Your Seller Account
3" Stainless Steel Flanged PWR-FLO⢠AODD Pump with Nordel/EPDM Diaphragm
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3" Flanged PWR-FLO⢠AODD Pump in stainless steel with Nordel/EPDM diaphragm is a reliable, high-performance pump designed for efficiency and durability. With a drop-in replacement for Wilden® AODD pumps, this air-driven double diaphragm pump is capable of handling large solids and slurries with ease. The PWR-FLO⢠asymmetrical spool design ensures an efficient air system while the anti-stalling feature provides excellent reliability for on/off liquid transfer applications. Made of chemically resistant materials, including stainless steel and Nordel/EPDM components, this pump is built to last and offers a max flow rate of 240 gpm. From filling to batching, this pump excels in diverse industrial applications, making it a top choice for institutional and government buyers seeking quality and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Nordel/EPDM
Specifications Check Valve Seat
Nordel/EPDM
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Nordel/EPDM
Specifications Displacement Per Cycle
1.46 gal | 5.53 lit
Specifications Elastomers
Nordel/EPDM, Nordel/EPDM, Nordel/EPDM
Specifications Fluid Inlet Size
3 Flanged in | 76 Flanged mm
Specifications Fluid Outlet Size
3 Flanged in | 76 Flanged mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
32 Inch | 32 in | 0.8230 m | 822.96 mm
Specifications Max Flow Rate
240 gpm | 908.50 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF80/SAAA/ND/ND/ND/FL/B/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-1857
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
20 Inch | 20 in | 0.5055 m | 505.46 mm
