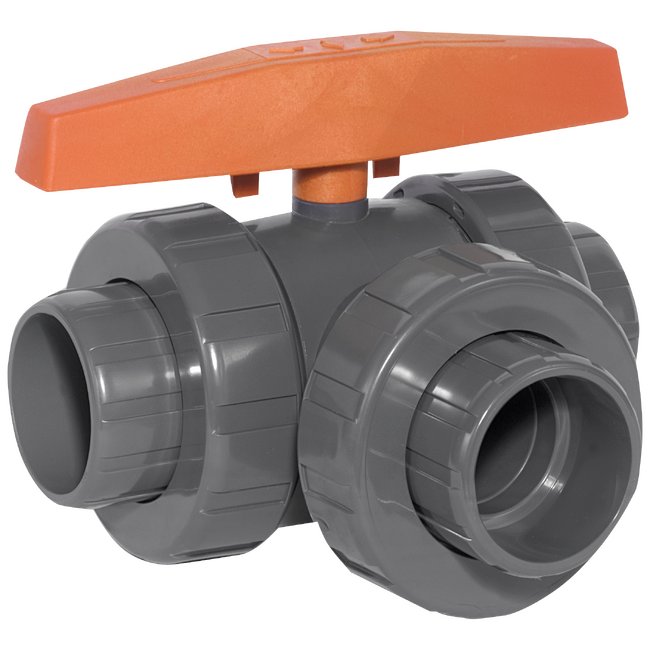

3-Way Lateral True Union Ball Valve, 1/2" PVC w/ EPDM Seals, Flanged End

Name: 3-Way Lateral True Union Ball Valve, 1/2" PVC w/ EPDM Seals, Flanged End
Brand: Hayward Flow Control
SKU: TRU-f33e38
Price: 49.99 USD
Availability: OutOfStock

SKU:TRU-f33e38

Versatile 3-Way Lateral PVC Ball Valve with EPDM Seals & Flanged End Connections

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3-Way Lateral True Union Ball Valve from our LA Series is a versatile flow control solution with a unique design. This valve allows the diversion of flow from the center port to either the left or right ports, providing flexibility without an OFF position. Constructed with durable PVC material and featuring EPDM seals, this valve is designed for reliability. With flanged end connections and a Cv Factor of 3, this valve is suitable for applications up to 150PSI. Sizes ranging from 1/2" to 6" ensure compatibility with various systems, meeting the needs of both consumer and institutional buyers.

Product Specifications

Specifications A

2.25 in | 57.15 mm

Specifications B

2.30 in | 58.42 mm

Specifications Body Material

PVC

Specifications C

3.29 in | 83.57 mm

Specifications Cv Factor

Specifications E

3.50 in | 88.90 mm

Specifications End Connection

Flanged

Specifications F

3.87 in | 98.30 mm

Specifications G

6.72 in | 170.69 mm

Specifications H

1.70 in | 43.18 mm

Specifications Seals

EPDM

Specifications Size

1/2"

3-Way Lateral True Union Ball Valve, 1/2" PVC w/ EPDM Seals, Flanged End
