30/50 Meter Viper Pipe Camera Inspection System
30/50 Meter Viper Pipe Camera Inspection System
SKU:PIP-91e7bc
The 30/50 Meter Viper Pipe Camera - Waterproof, portable, high-res imaging for sewer, duct, and pipeline inspections.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
30/50 Meter Viper Pipe Camera Inspection System
$2,399.99
Quantity: 1
Claim Your Seller Account
30/50 Meter Viper Pipe Camera Inspection System
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 30/50 Meter Viper Pipe Camera Inspection System by Fiberscope.net is a versatile and cost-effective solution for inspecting sewers, building ducts, wells, chimneys, and more. Featuring a durable waterproof design with advanced Fiberglass Cable and a 0.27" camera head, this system offers high-resolution imaging, four built-in LED lights, and a portable battery-operated setup. Capture images and videos directly to an SD card with the 9' color LCD screen. Ideal for Well Casing Inspections, Pipeline Surveys, Plumbing Applications, and more.
Product Specifications
Additional Information

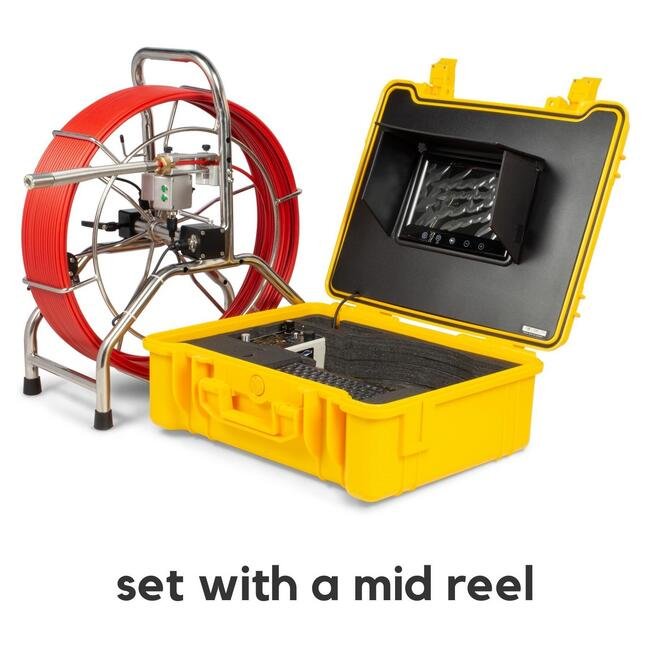

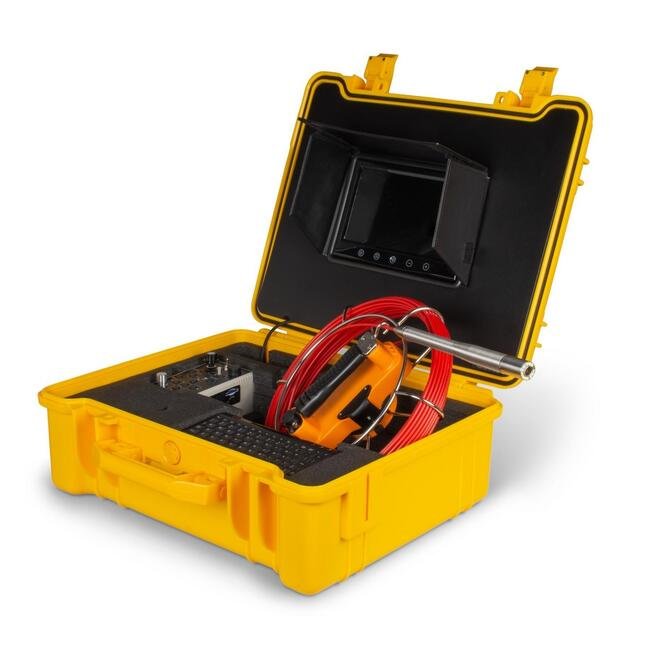

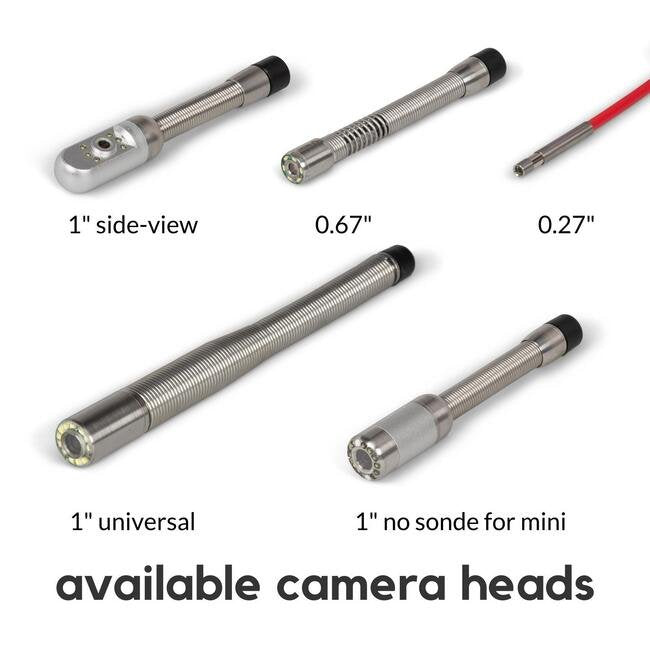

The VIPER Pipe Camera is a cost-effective set designed to inspect sewers, building ducts/pipes, wells, chimneys, and power plants. This set features a small portable handheld probe coiled on a steel reel and a durable hard plastic carrying case that takes up very little space and can be easily transported to different job sites. The waterproof and lightweight case houses a 9' TFT color LCD screen and additional controls, including the DVR box, to capture images and videos directly to an SD memory card, a rechargeable battery, and a microphone. Integrated into the camera head is a high-resolution CCD camera chip with a wide-angle field of view, designed to capture bright, color images and videos of the inspection areas. Scratch-resistant sapphire lenses are fused into the camera, while four LED lights illuminate the inspection area. The waterproof PVC-coated fiberglass push cable is 5.5mm (0.21") in diameter and is available in either 30-meter (98.4') or 50-meter (164.0') lengths. The 0.27" (7mm) camera head is not interchangeable and doesn't have a spring section. This VIPER Pipe Camera is a budget and simple solution for inspecting the smallest spaces like well casings, water pipelines, and factory equipment.
Applications
Well Casing InspectionsPipeline InspectionsDrainage SurveysPlumbing and Sewer ApplicationsHVAC Duct InspectionsConstruction Surveys Water Mains Inspections
Features
Fiberglass CableWorking length up to 164.0 ft.4 built-in LED lightsPortable Battery-Operated System
Technical Specs Battery Operated
Yes
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Camera Types
Straight View
Technical Specs Footage Counter
Yes
Technical Specs Head Diameter
0.27 in | 7 mm
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Heads
No
Technical Specs Length
98.4 ft | 164.0 ft | 30 m | 50 m
Technical Specs Monitor Size
9 in
Technical Specs Monitor Type
Liquid Crystal Display (LCD)
Technical Specs Note
Available for Rent
Technical Specs Sonde Frequency
No
Technical Specs Text Generator
Yes
Technical Specs Waterproof
Ingress Protection (IP67)
