30 cm³ Vitreous Carbon E-Beam Liner with Web
30 cm³ Vitreous Carbon E-Beam Liner with Web
SKU:RDM-00460d
High-quality 30 cm³ Vitreous Carbon E-Beam Liner with Web for precise and efficient material evaporation.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
30 cm³ Vitreous Carbon E-Beam Liner with Web
$59.99
Quantity: 1
Claim Your Seller Account
30 cm³ Vitreous Carbon E-Beam Liner with Web
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

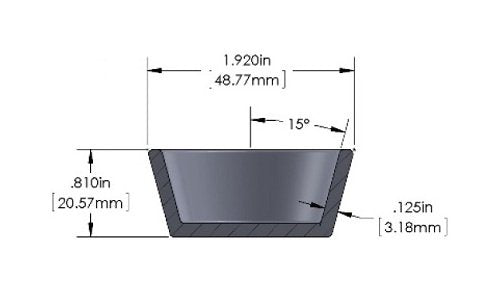

The RDM-EB26 Series 30 cm³ Vitreous Carbon E-Beam Liner with Web is a high-quality crucible liner designed for electron beam evaporation processes. With a precise size of 30 cubic centimeters, a height of 0.810 inches, a width of 1.920 inches, and a 15-degree angle, this liner offers exceptional performance and durability. Constructed from vitreous carbon with a wall thickness of 0.125 inches, it ensures efficient material evaporation. Suitable for both consumer and institutional buyers, this liner can be customized to meet specific volume requirements, making it an ideal choice for a wide range of applications.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.810 in | 20.57 mm
Specifications Material
Vitreous Carbon
Specifications Size
30 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.920 in | 48.77 mm
