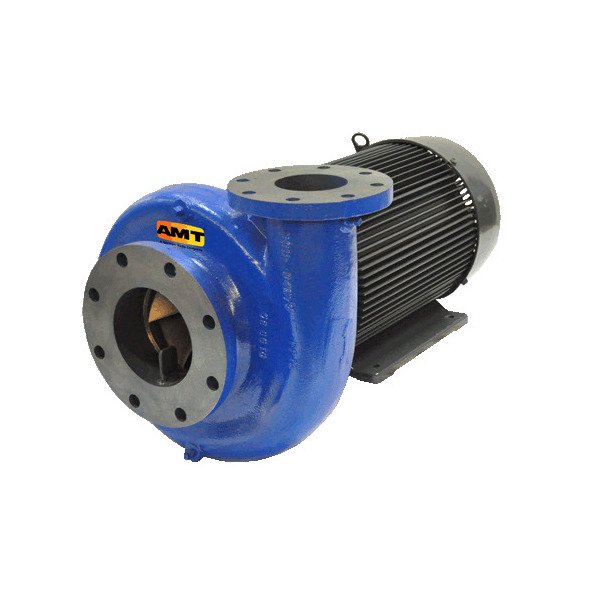

30 HP TEFC Cast Iron Centrifugal Pump - 4" x 6"
30 HP TEFC Cast Iron Centrifugal Pump - 4" x 6"
SKU:PRO-489a71
Reliable 30 HP Cast Iron Centrifugal Pump with Viton seal and bronze wear ring for OEM and Industrial applications.
Regular price
$3,799.99
Regular price
Sale price
$3,799.99
Unit price
per
Initiate Order
30 HP TEFC Cast Iron Centrifugal Pump - 4" x 6"
$3,799.99
Quantity: 1
Claim Your Seller Account
30 HP TEFC Cast Iron Centrifugal Pump - 4" x 6"
$3,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 30 HP TEFC Cast Iron Centrifugal Pump is a high-performance solution ideal for OEM, Industrial/Commercial, and processing applications. With a Viton® Silicon Carbide/Carbon Mechanical Seal, bronze case wear ring, and easy servicing design, this pump ensures reliability, low maintenance, and compatibility with nonflammable liquids. Meeting high industry standards, this pump is a dependable choice for continuous-duty operations.
Product Specifications

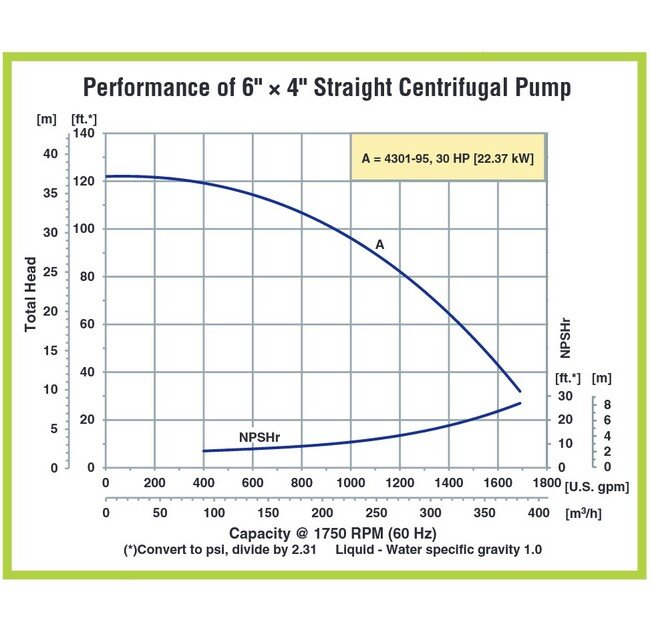

Curves 0
Performance Curves

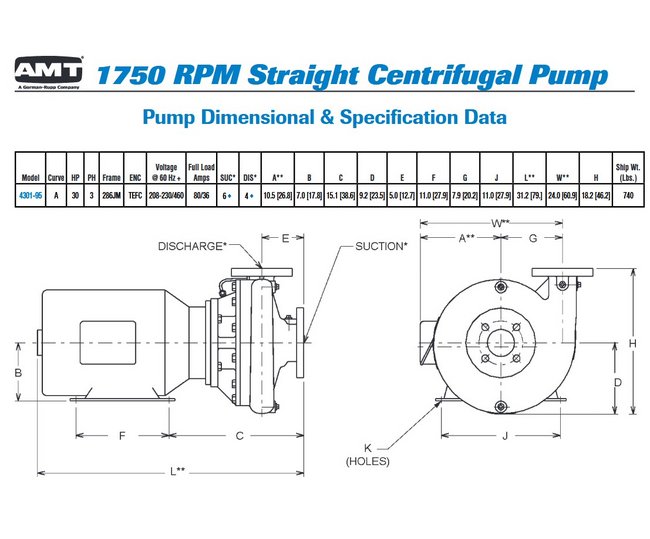

Dimensions 0
Dimensions
Specifications 0
Cast Iron ConstructionSilicon Bronze Precision Cast Dynamically Balanced ImpellerViton® Silicon Carbide/Carbon Mechanical SealBronze Case Wear Ring6" x 4" 125 Lb. 8-Bolt Flanged Suction Port & 4-Bolt Flanged Discharge PortPull-From-Rear Design Permits Easy Servicing Without Disturbing Piping1/4" NPT Gauge Taps on Suction & Discharge Ports For System MonitoringBronze Shaft Sleeve to Protect Motor ShaftMaximum Casing Pressure 175 PSIMaximum Temperature 200° FIncludes Seal Flush/Air Relief ValveFront Drain PlugsTEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors
Specifications Height
18 in | 462.28 mm
Specifications Inlet Size
6 FNPT in
Specifications Length
31 Inch | 79.25 Centimeter | 2.60 ft | 31 in | 0.7925 m | 792.48 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Moc
Cast Iron
Specifications Sku
AT430195SP
Specifications Weight
244.94 Kilogram | 244.94 kg | 540 lbs
Specifications Width
24 Inch | 24 in | 0.6096 m | 609.60 mm
