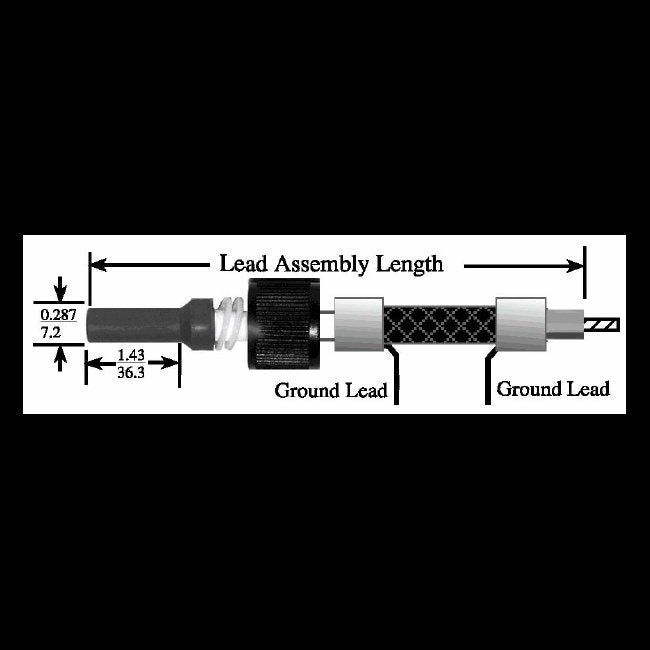

Experience enhanced performance and reliability with our 30 kVDC Shielded & Non-Shielded Lead Assembly from the C Series LGH™ Compatible High Voltage Cable Assemblies. This single-ended plug cable assembly features a threaded coupling style, gold-finished BeCu contacts, and white silicone rubber insulation. With a voltage rating of 30 kVDC, current rating of 10 A, and operating temperature range of -55 to 95 °C, this assembly ensures optimal functionality in various conditions. Compliant with RoHS standards, this assembly is designed for durability and precision in high voltage applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 735 series lead assembliesAll LGH 2LI series lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 735
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
45 kVDC
Specifications Voltage Rating
30 kVDC
Specifications Wire Insulation
White 0.300 Dia. silicone rubber, #AWG 16
