30 kVDC Shielded & Non-Shielded Lead Assembly with C 735 Series Compatibility

30 kVDC Shielded & Non-Shielded Lead Assembly with C 735 Series Compatibility

HIG-164471

Reliable 30 kVDC Shielded & Non-Shielded Lead Assembly for high-voltage applications with C Series LGH™ compatibility.

$89.99
$89.99
Sale

Initiate Order

30 kVDC Shielded & Non-Shielded Lead Assembly with C 735 Series Compatibility

30 kVDC Shielded & Non-Shielded Lead Assembly with C 735 Series Compatibility

$89.99

Quantity: 1

Claim Your Seller Account

30 kVDC Shielded & Non-Shielded Lead Assembly with C 735 Series Compatibility

30 kVDC Shielded & Non-Shielded Lead Assembly with C 735 Series Compatibility

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

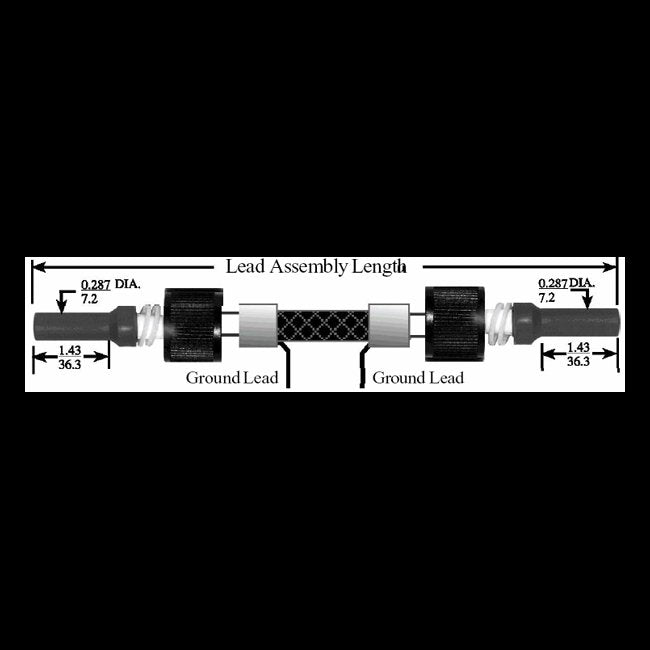

The 30 kVDC Shielded & Non-Shielded Lead Assembly is a reliable high-voltage cable assembly designed for compatibility with C Series LGH™ components. Featuring a double-ended plug cable assembly type, this lead assembly offers a current rating of 10 A and operates within a wide temperature range from -55 to 95 °C. With a test voltage of 45 kVDC and insulator material made of plastic, this assembly ensures optimal performance and durability. The contact properties include BeCu with CRES hood and a gold contact finish, guaranteeing superior conductivity and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 735 series lead assembliesAll LGH 2LI series lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 735
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
45 kVDC
Specifications Voltage Rating
30 kVDC
Specifications Wire Insulation
White 0.300 Dia. silicone rubber, #AWG 16
