30 Series Mini Support Post - Dual Locking, Natural Nylon, UL94V-0/UL94V-2, Pack of 1000

Name: 30 Series Mini Support Post - Dual Locking, Natural Nylon, UL94V-0/UL94V-2, Pack of 1000
Brand: All Electronics Hardware
SKU: 01C-521778
Price: 59.99 USD
Availability: OutOfStock

SKU:01C-521778

Get stability and security with 30 Series Mini Support Post. Nylon construction, dual-locking feature, ASTM and PA111 compliant. RoHS certified.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

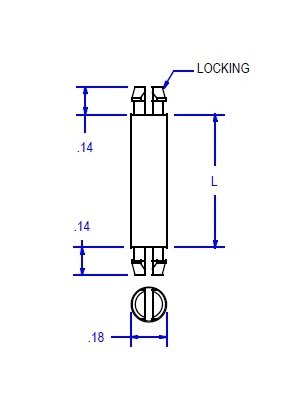

Enhance circuit board stability with our 30 Series Mini Support Post featuring a dual-locking mechanism for secure positioning. Made of durable Nylon 66, UL94V-2 rated (UL94V-0 option available), this post boasts ASTM D 4066 and PA111 compliance. With a temperature range of -40 to 185F (-40 to 85C), it ensures reliable performance in various environments. Each post is .812 inches in length with a .152-inch board hole diameter, suitable for panels with a .063-inch thickness. Ideal for electronics projects requiring precise support and RoHS compliance.

Product Specifications

Specifications Board Hole Diameter

.152 ± .005 (3.9) inches (mm)

Specifications Dim L

.812 ± .010 (20.6) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 ± .005 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

30 Series Mini Support Post - Dual Locking, Natural Nylon, UL94V-0/UL94V-2, Pack of 1000
