30 Series Mini Support Post Kit
30 Series Mini Support Post Kit
SKU:01C-a75ff8
Dual locking mini support post kit for circuit boards, ASTM and RoHS compliant, temperature range -40 to 185F
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
30 Series Mini Support Post Kit
$59.99
Quantity: 1
Claim Your Seller Account
30 Series Mini Support Post Kit
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 30 Series Mini Support Post Kit is a versatile solution for securing circuit boards effectively. Each post features a dual locking mechanism for added stability. Made from durable Nylon 66 material, this kit includes 1000 posts in a natural color. With a temperature range from -40 to 185F (-40 to 85C), it ensures reliable performance in various environments. Meets ASTM D 4066 and PA111 standards, as well as RoHS compliance for environmentally friendly procurement.

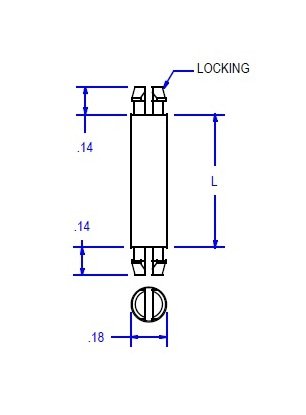

Product Specifications
Specifications Board Hole Diameter
.152 ± .005 (3.9) inches (mm)
Specifications Dim L
.875 ± .010 (22.2) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 ± .005 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
