30 Series Mini Support Posts .152 Board Hole x .152 Chassis Side

Name: 30 Series Mini Support Posts .152 Board Hole x .152 Chassis Side
Brand: All Electronics Hardware
SKU: 01C-5531bf
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-5531bf

Durable dual-locking mini support posts for circuit boards with .152" hole diameter. RoHS compliant, temperature resistant from -40 to 185F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board supports with our 30 Series Mini Support Posts. These dual locking mini support posts are made of Nylon 66 UL94V-2 material, ensuring durability and reliability in various applications. Each post features a .152 inches board hole diameter, suitable for secure installations. With a temperature range of -40 to 185F, these support posts offer exceptional functionality under diverse conditions. Compliant with RoHS standards, these posts provide a safe and environmentally friendly solution for your projects.

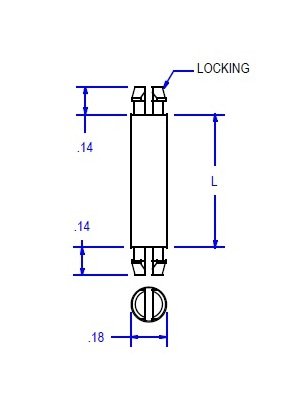

Product Specifications

Specifications Board Hole Diameter

.152 ± .005 (3.9) inches (mm)

Specifications Dim L

.750 ± .010 (19.1) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 ± .005 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
