30 Series Mini Support Posts - Nylon 66 UL94V-0
30 Series Mini Support Posts - Nylon 66 UL94V-0
SKU:01C-45c123
Reliable 30 Series Mini Support Posts for secure circuit board mounting, Nylon 66 UL94V-0 material, ASTM and RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
30 Series Mini Support Posts - Nylon 66 UL94V-0
$24.99
Quantity: 1
Claim Your Seller Account
30 Series Mini Support Posts - Nylon 66 UL94V-0
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 30 Series Mini Support Posts are essential components for securing circuit boards in place with precision and durability. Made from Nylon 66 UL94V-0 material, these dual locking support posts ensure a secure fit, even in challenging environments. With a board hole diameter of .152 inches and a panel thickness of .063 inches, these mini support posts are meticulously engineered to meet stringent ASTM and RoHS compliance standards. Suitable for a wide temperature range from -40 to 185F, these posts are reliable and versatile for various applications.

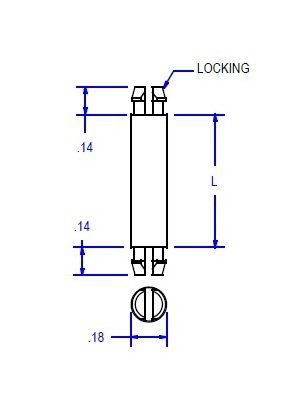

Product Specifications
Specifications Board Hole Diameter
.152 ± .005 (3.9) inches (mm)
Specifications Dim L
1.00 ± .010 (25.4) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 ± .005 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
