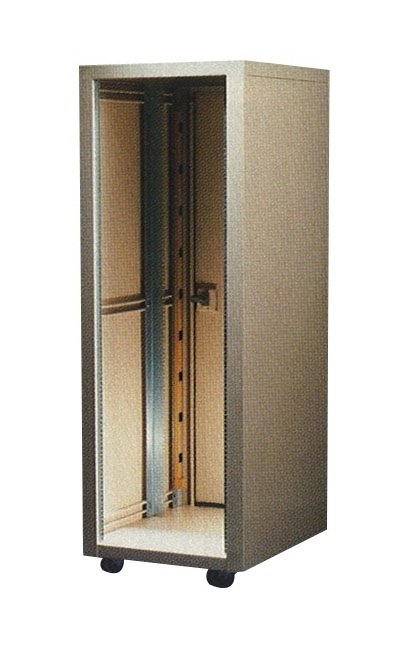

Medium duty cabinet with optional casters and power strip assembly shown.This versatile line of cabinets is a modular enclosure suitable for military and data communication applications. Available in a wide range of heights, depths and panel widths, the 3000 series cabinet can meet practically any packaging requirement.
Product Specifications
Notes

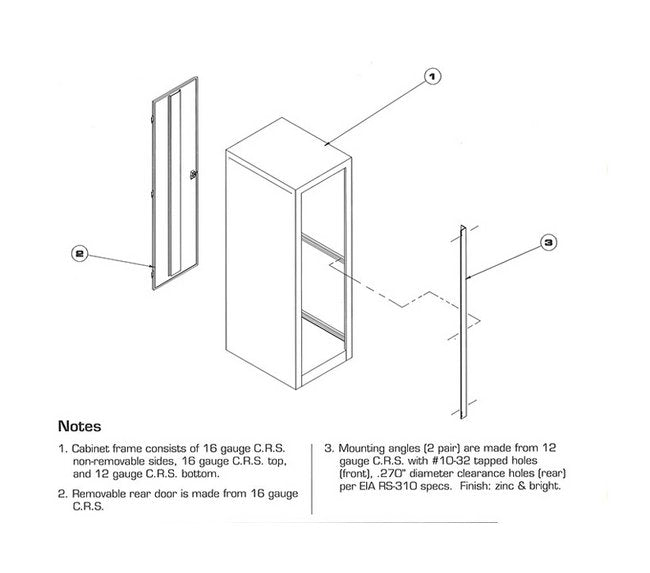

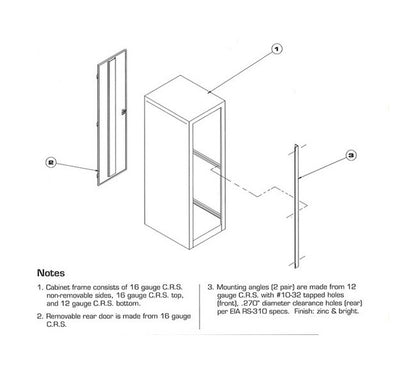

Cabinet frame consists of 16 gauge C.R.S. non-removable sides, 16 gauge C.R.S. top, and 12 gauge C.R.S. bottom. Removable rear door is made from 16 gauge C.R.S. Mounting angles (2 pair) are made from 12 gauge C.R.S. with #10;-32 tapped holes (front), 0.270" diameter clearance holes (rear) per EIA RS-310 specs. Finish: zinc and bright.
Specifications Applications
Data communications | Military

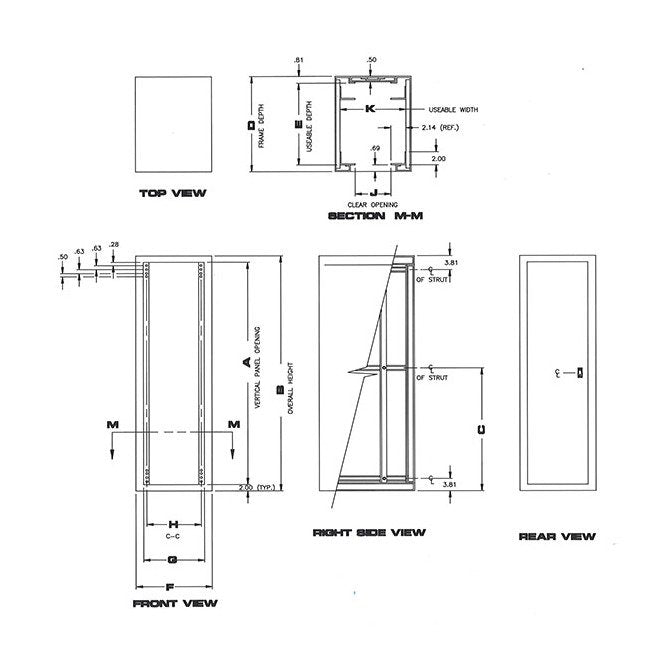

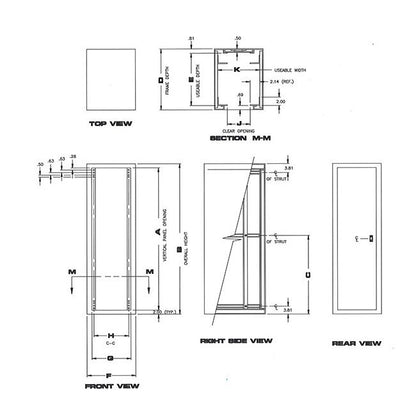

Specifications Clear Opening J
17.94 in
Specifications Color Charts
Fed Standard 595 Color Chart | RAL Color Chart
Specifications Frame Depth D
24.00 in
Specifications Frame Width F
24.00 in
Specifications Gdi Reference
Contact factory for information
Specifications Hole C C H
18.31 in
Specifications Number Of Bays
1
Specifications Options
Busbar assembly | Caster base-top view | Face mounted door | Heavy-duty caster base | Heavy-duty casters | Heavy-duty lifting eyes | Key lock | Louvered rear door bottom | Louvered rear door top | Louvered rear door top and bottom | Louvered side top and bottom | Louvered side, bottom | Louvered side, top | Louvered top pan | Louvers | Medium duty caster base | Medium duty casters | Mounting "Z" rail | Mounting channel | Offset mounting channel | Power strip assembly | Rear horizontal space divider | Standard duty caster base | Standard duty casters | Standard duty lifting eyes | Standard mounting angle | Stationary base
Specifications Overall Height B
35.56 in
Specifications Panel Height A
31.56 in (18U)
Specifications Panel Width G
19.13 in
Specifications Series
VR3000
Specifications Spec Sheets
Brochure for 3000 Series Medium Duty Cabinet
Specifications Useable Depth E
22.50 in
Specifications Useable Width K
22.25 in
