3000 Series Medium Duty Cabinet
3000 Series Medium Duty Cabinet
SKU:VEN-ba0f75
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3000 Series Medium Duty Cabinet
$49.99
Quantity: 1
Claim Your Seller Account
3000 Series Medium Duty Cabinet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

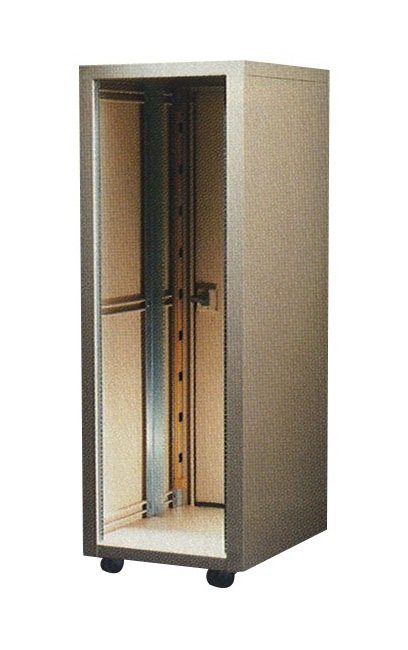

Medium duty cabinet with optional casters and power strip assembly shown.This versatile line of cabinets is a modular enclosure suitable for military and data communication applications. Available in a wide range of heights, depths and panel widths, the 3000 series cabinet can meet practically any packaging requirement.
Product Specifications
Notes

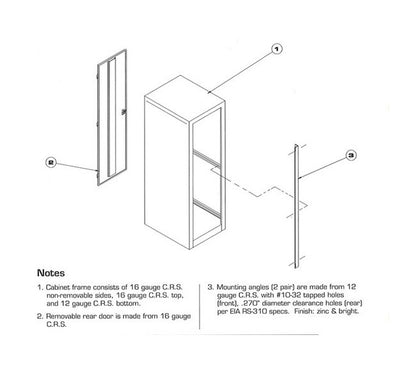

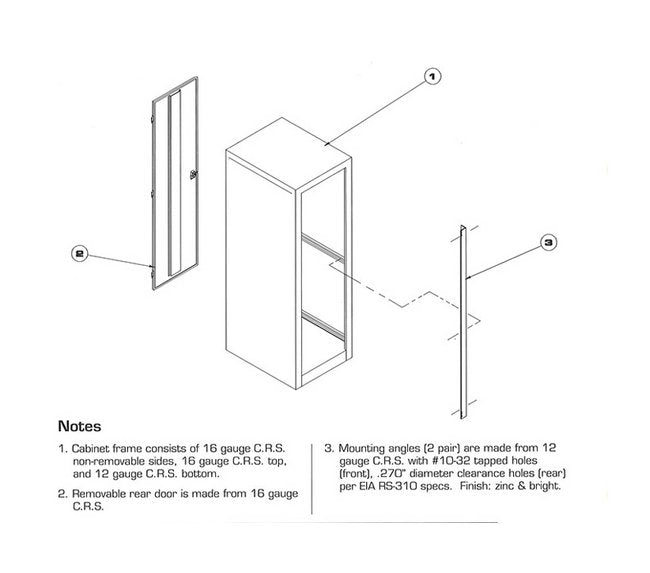

Cabinet frame consists of 16 gauge C.R.S. non-removable sides, 16 gauge C.R.S. top, and 12 gauge C.R.S. bottom.Removable rear door is made from 16 gauge C.R.S.Mounting angles (2 pair) are made from 12 gauge C.R.S. with #10;-32 tapped holes (front), 0.270" diameter clearance holes (rear) per EIA RS-310 specs. Finish: zinc and bright.
Specifications Applications
Data communications | Military

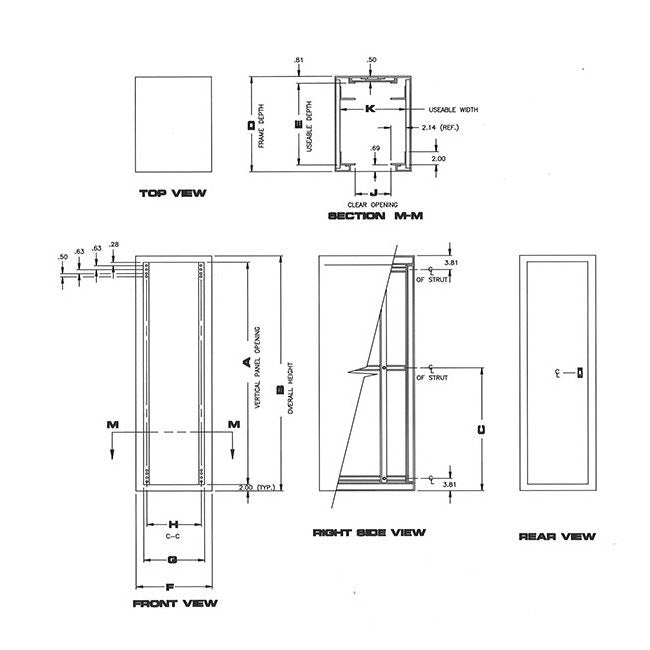

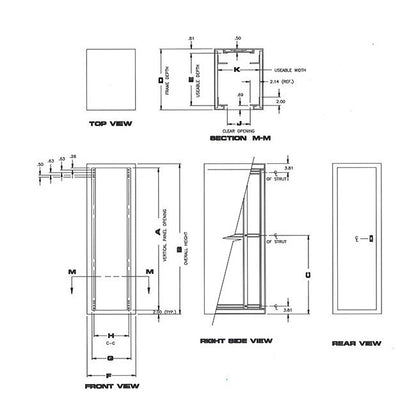

Specifications Clear Opening J
17.94 in
Specifications Color Charts
Fed Standard 595 Color Chart | RAL Color Chart
Specifications Frame Depth D
36.00 in
Specifications Frame Width F
24.00 in
Specifications Gdi Reference
Contact factory for information
Specifications Hole C C H
18.31 in
Specifications Number Of Bays
1
Specifications Options
Busbar assembly | Caster base-top view | Face mounted door | Heavy-duty caster base | Heavy-duty casters | Heavy-duty lifting eyes | Key lock | Louvered rear door bottom | Louvered rear door top | Louvered rear door top and bottom | Louvered side top and bottom | Louvered side, bottom | Louvered side, top | Louvered top pan | Louvers | Medium duty caster base | Medium duty casters | Mounting "Z" rail | Mounting channel | Offset mounting channel | Power strip assembly | Rear horizontal space divider | Standard duty caster base | Standard duty casters | Standard duty lifting eyes | Standard mounting angle | Stationary base
Specifications Overall Height B
39.06 in
Specifications Panel Height A
35.06 in (20U)
Specifications Panel Width G
19.13 in
Specifications Series
VR3000
Specifications Spec Sheets
Brochure for 3000 Series Medium Duty Cabinet
Specifications Useable Depth E
34.50 in
Specifications Useable Width K
22.25 in
