3003 Alloy H14 Aluminum Sheet, 0.0100 in Thickness
3003 Alloy H14 Aluminum Sheet, 0.0100 in Thickness
SKU:300-43cca4
High-quality 3003 Alloy H14 Aluminum Sheet, 0.0100 in thickness, ASTM-B-209 compliant, with superior strength and durability.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
3003 Alloy H14 Aluminum Sheet, 0.0100 in Thickness
$25.99
Quantity: 1
Claim Your Seller Account
3003 Alloy H14 Aluminum Sheet, 0.0100 in Thickness
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3003 Alloy H14 Half Hard Temper Aluminum Sheet offers exceptional strength and durability, perfect for a wide range of industrial applications. With a thickness of 0.0100 inches and precision ASTM-B-209 compliance, this aluminum sheet ensures superior performance. Its composition includes precise levels of manganese, silicon, copper, and iron, meeting stringent industry standards. Benefit from its high tensile and yield strength, along with excellent elongation properties, making it ideal for demanding projects.
Product Specifications

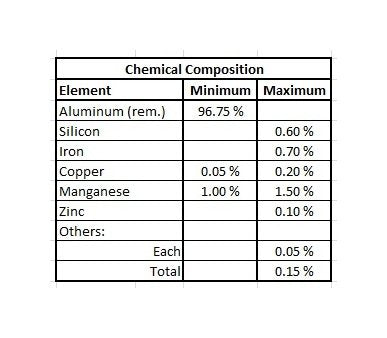

Composition Maximum Copper Composition
0.20 %
Composition Maximum Iron Composition
0.70 %
Composition Maximum Manganese Composition
1.50 %
Composition Maximum Others Composition Each
0.05 %
Composition Maximum Others Composition Total
0.15 %
Composition Maximum Silicon Composition
0.60 %
Composition Maximum Zinc Composition
0.10 %
Physical Properties Maximum Tensile Strength
26,000 psi
Physical Properties Minimum Elongation 0009 To 0012 Inch In Thic
1 %
Physical Properties Minimum Elongation 0013 To 0019 Inch In Thic
2 %
Physical Properties Minimum Elongation 0020 To 0031 Inch In Thic
3 %
Physical Properties Minimum Tensile Strength
20,000 psi
Physical Properties Minimum Yield Strength
17,000 psi
Specifications Alloy
3003 Aluminum Alloy
Specifications Astm Steel Standard
ASTM-B-209
Specifications Length
Custom
Specifications Temper
H14 Half Hard Temper
Specifications Thickness
0.0100 in
Specifications Thickness Tolerance
0.0008 in
Specifications Width
Custom
