3003 Alloy H14 Aluminum Sheet, 0.0160 in Thickness
3003 Alloy H14 Aluminum Sheet, 0.0160 in Thickness
SKU:300-25df35
High-quality 3003 Alloy H14 Aluminum Sheet, 0.0160 in thickness, compliant with ASTM standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
3003 Alloy H14 Aluminum Sheet, 0.0160 in Thickness
$25.99
Quantity: 1
Claim Your Seller Account
3003 Alloy H14 Aluminum Sheet, 0.0160 in Thickness
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3003 Alloy H14 Half Hard Temper Aluminum Sheet offers exceptional durability and strength. With a thickness of 0.0160 inches and meeting ASTM-B-209 standards, this aluminum sheet is ideal for various applications. Its high tensile and yield strength, along with precise composition limits, make it a reliable choice for both consumer and institutional needs.
Product Specifications

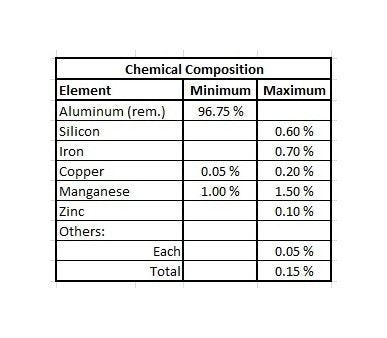

Composition Maximum Copper Composition
0.20 %
Composition Maximum Iron Composition
0.70 %
Composition Maximum Manganese Composition
1.50 %
Composition Maximum Others Composition Each
0.05 %
Composition Maximum Others Composition Total
0.15 %
Composition Maximum Silicon Composition
0.60 %
Composition Maximum Zinc Composition
0.10 %
Physical Properties Maximum Tensile Strength
26,000 psi
Physical Properties Minimum Elongation 0009 To 0012 Inch In Thic
1 %
Physical Properties Minimum Elongation 0013 To 0019 Inch In Thic
2 %
Physical Properties Minimum Elongation 0020 To 0031 Inch In Thic
3 %
Physical Properties Minimum Tensile Strength
20,000 psi
Physical Properties Minimum Yield Strength
17,000 psi
Specifications Alloy
3003 Aluminum Alloy
Specifications Astm Steel Standard
ASTM-B-209
Specifications Length
Custom
Specifications Temper
H14 Half Hard Temper
Specifications Thickness
0.0160 in
Specifications Thickness Tolerance
0.0008 in
Specifications Width
Custom
