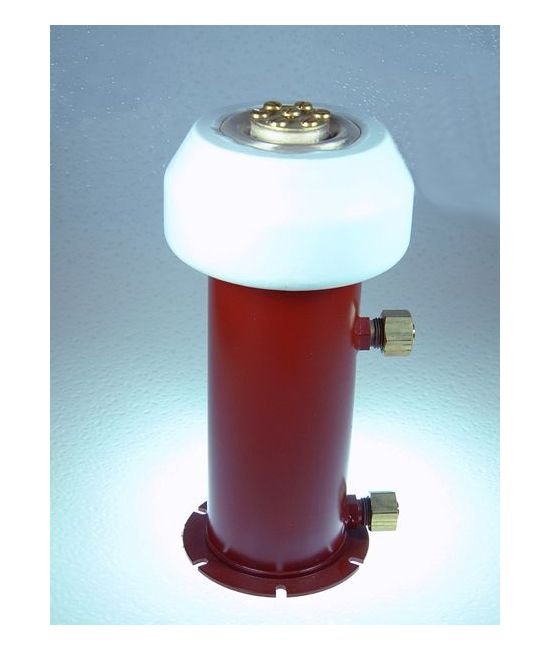

300A Water-Cooled Ceramic Capacitors
300A Water-Cooled Ceramic Capacitors
SKU:CER-dc6406
Unleash power with our water-cooled ceramic capacitors - perfect for high-power RF equipment and industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
300A Water-Cooled Ceramic Capacitors
$699.99
Quantity: 1
Claim Your Seller Account
300A Water-Cooled Ceramic Capacitors
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

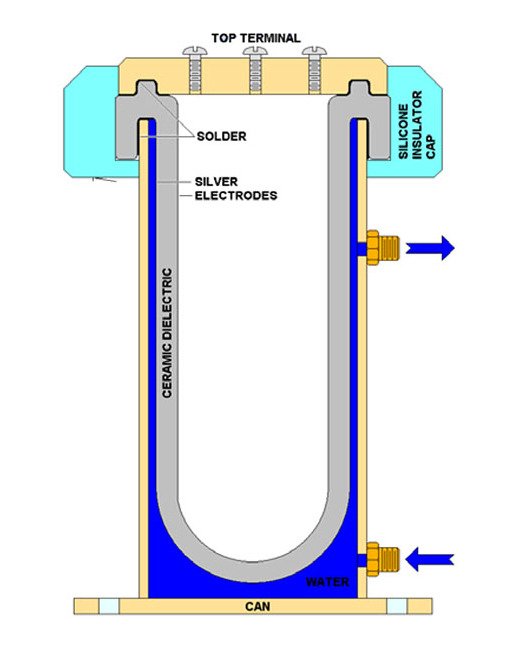

Experience unparalleled power with our PWC Water-Cooled Ceramic Capacitors. Delivering up to 4000kVA of reactive power and 300 Amperes of current capacity, these capacitors are designed with a low dissipation factor Class I dielectric for high efficiency. Ideal for high-power RF equipment like induction heating and dielectric welding, they boast exceptional structural strength and thermodynamic efficiency through water cooling.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
5000 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.

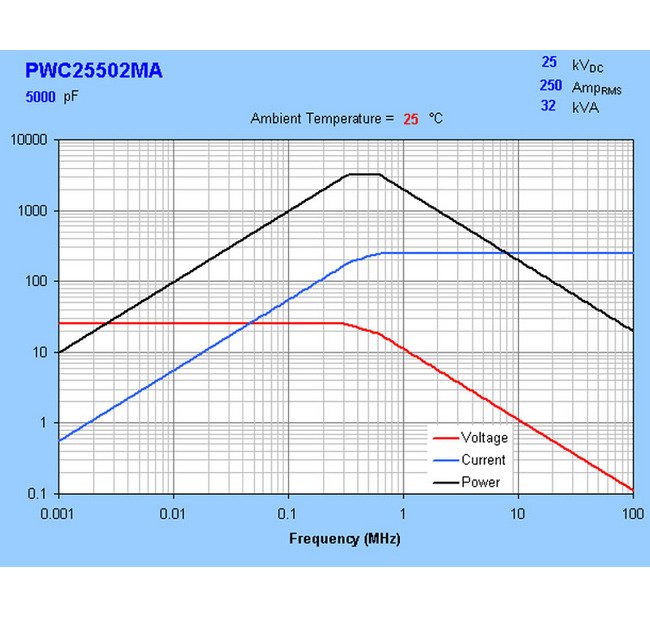

Specifications Fh
0.621 MHz
Specifications Fl
0.326 MHz
Specifications Imax Rms
250 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
3200 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
25 kV
