300L Food Transfer Pump with Vane Pump & Constant Pressure Device
300L Food Transfer Pump with Vane Pump & Constant Pressure Device
SKU:FOO-5183e1
Efficiently transfer food with precision using this 300L Capacity Pump for industrial operations.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
300L Food Transfer Pump with Vane Pump & Constant Pressure Device
$8,999.00
Quantity: 1
Claim Your Seller Account
300L Food Transfer Pump with Vane Pump & Constant Pressure Device
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 300 Liter Hopper Capacity Food Transfer Pump is a high-performance solution designed for efficient food transfer operations in industrial settings. Featuring a Vane Pump that conveys products without damage, a Foldable Hopper with Screw Feeder to minimize waste, and a Constant Pressure Device for controlled pressure feeding, this pump ensures optimal productivity and product integrity. With a filling capacity of 0 to 3,000 kg/h and compliance with industry standards, it is ideal for government and institutional procurement needs.
Product Specifications
Additional Information Additional Information
For the constant pressured operation with high speed linking and hanging system LINKWEL, MACHWEL and etc. Not only that, it is also good to connect hamburg former and to pump the viscous stuff etc.
Features Features

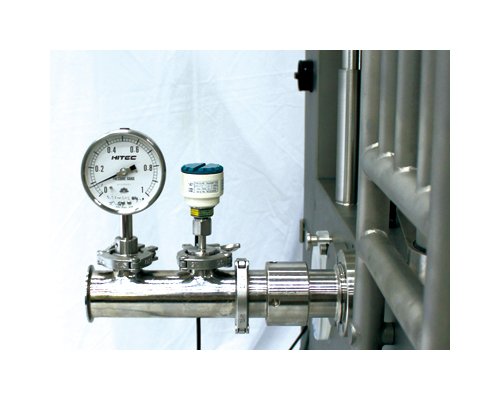

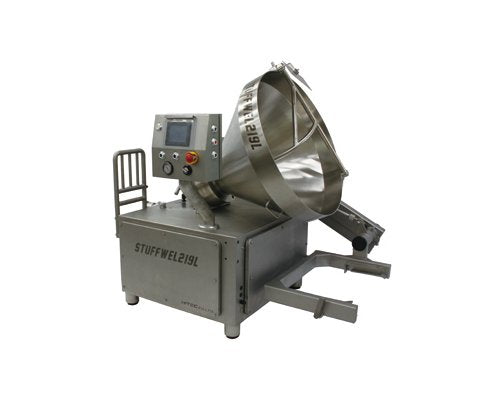

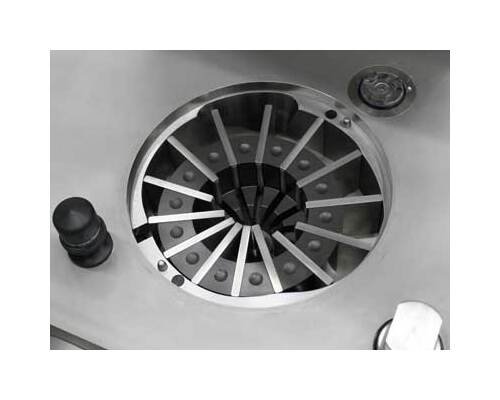

Vane PumpDue to the new type vane pump, it is accomplished to convey products without damaging such as crushing and breaking into pieces.Foldable Hopper with Screw FeederHopper is internally equipped with Screw Feeder. It makes to use up all meat without waste. Also, since Hopper is foldable, it is easy and simple to wash.Constant Pressure Device (PID Device), Pressure Gauge (Option)The equipment feeds meat with controlled pressure to other process equipment.Pump SpecificationThe STUFFWEL 219L can also be used as a meat transfer pump by using PID device and controlling the meat pressure inside the piping. The layout above is an example of Hitec MACHWEL machine. One STUFFWEL 219L can be connected to multiple linking and hanging machines.
Note Note

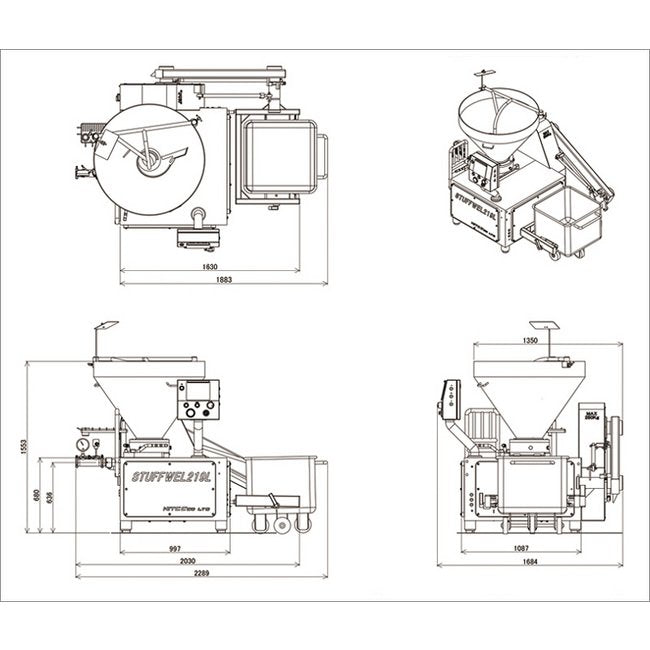

Specifications and equipment are subject change without any obligation on the part of manufacturer.The above production rate is subject to change due to the conditions such as production item, factory and other conditions.Layout dimension includes dimension of optional equipment.
Technical Specs Approximate Weight
700 kg
Technical Specs Approximate Weight With Lifting Device
925 kg
Technical Specs Brands
Hitec Food Equipment, Inc.
Technical Specs Depth
1,265 mm | 49-51/64 in
Technical Specs Depth With Lifting Device
1,684 mm | 66-19/64 in
Technical Specs Filling Capacity
0 to 3,000 kg/h
Technical Specs Filling Pressure
0 to 40 bar
Technical Specs Height
1,553 mm | 61-9/64 in
Technical Specs Height With Lifting Device
1,553 mm | 61-9/64 in
Technical Specs Hopper Capacity
300 L
Technical Specs Length
1,399 mm | 55-5/64 in
Technical Specs Length With Lifting Device
2,030 mm | 79-59/64 in
Technical Specs Phase
3
Technical Specs Portioning Range
4.0 ~ 9,999.9 g
Technical Specs Power
4.8 kW
Technical Specs Power With Lifting Device
6.25 kW
Technical Specs Voltage
200 V
