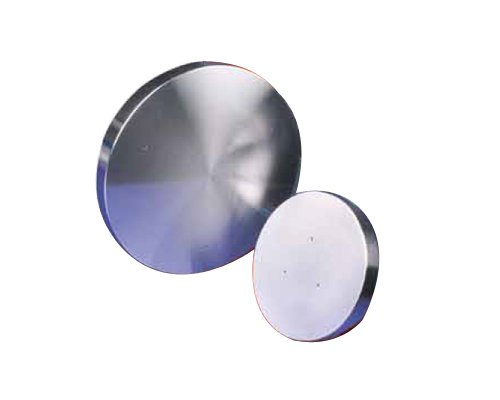

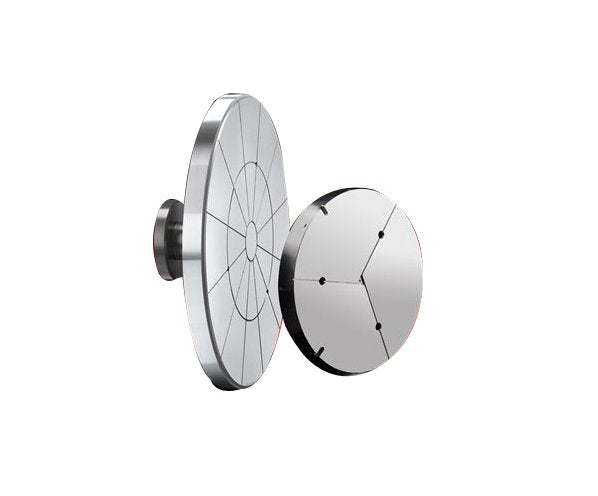

300mm Bare Machined Aluminum Platen Heater
300mm Bare Machined Aluminum Platen Heater
SKU:200-dc8bc4
Efficient 300mm Bare Aluminum Platen Heater for precise wafer processing. Quick stock delivery & world-class performance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
300mm Bare Machined Aluminum Platen Heater
$499.99
Quantity: 1
Claim Your Seller Account
300mm Bare Machined Aluminum Platen Heater
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 300mm Bare Machined Aluminum Platen Heater is a cost-effective solution for semiconductor processing and research. Designed with precision, this heater ensures world-class performance with operating temperatures up to 752°F. Featuring an aluminum alloy 356 construction, it offers excellent surface temperature uniformity of ±0.3% for precise wafer processing. With quick stock delivery and 'cast-in' reliability, this heater guarantees long product life, making it ideal for prototype trials and temporary repairs. Upgrade your wafer fabrication process with this efficient and durable platen heater.
Product Specifications
Additional Information 0
This platen heater design is ideal for prototype machine trials or engineering experiments as well as temporary repairs until custom heaters can be manufactured. CAS platen heaters provide a complete turnkey solution and are available in anodized finish, or in bare machined aluminum 356 with optional add-on features. The stock anodized cast aluminum platen heaters are complete, ready to install parts and are available for shipment within one business day.Part is ultrasonic washed followed by IPA wipe down prior to packaging.
Applications 0
Semiconductor processing.Semiconductor research and development.
Features And Benefits 0
Stock deliveryAssures a cost effective option for 200 and 300 mm wafer processing.World class performance"Cast-in" reliability assures long product life.Operating temperatures up to 752 ºF (400 ºC) for a wide range of process applications.Surface temperature uniformity of ±0.3% of set point assures wafer processing accuracy.
Specifications Angle
120 º
Specifications Cleaning
Ultrasonic wash followed by IPA wipe down
Specifications Delivery Time
4 to 6 weeks

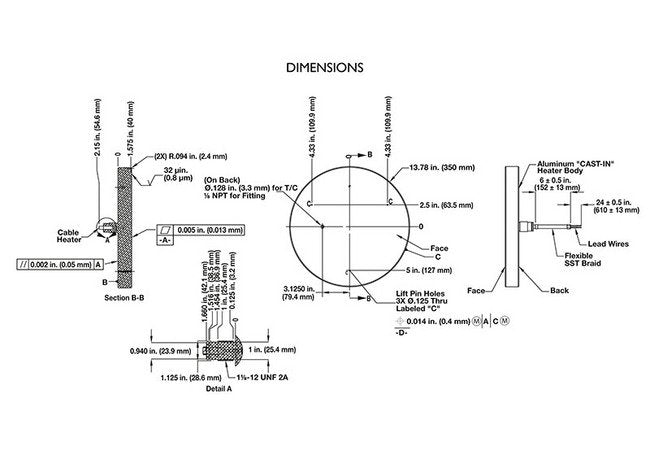

Specifications Diameter
13.78 in | 350 mm
Specifications Heater Power At 208 V
3350 W
Specifications Heater Shape
Platen
Specifications Lift Pin Hole Diameter
0.125 in | 3.2 mm
Specifications Material
Aluminum Alloy 356
Specifications Number Of Lift Pin Hole
3X
Specifications Number Of Thermocouple Hole
1X
Specifications Perfect Circle Diameter
10 in | 254 mm
Specifications Surface Flatness
< 0.0005 in | 0.013 mm
Specifications Surface Temperature Uniformity
±0.3% of set point based on measurements at laboratory ambient conditions
Specifications Thermocouple Hole Diameter
0.128 in | 3.25 mm

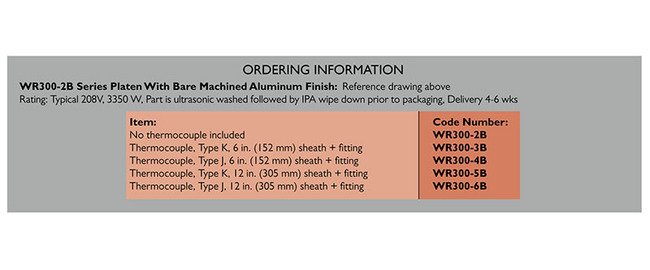

Specifications Thermocouple Type
No Thermocouple Included
Specifications Thickness
1.575 in | 40 mm
Specifications Power
3350 W
Specifications Voltage
208 V
