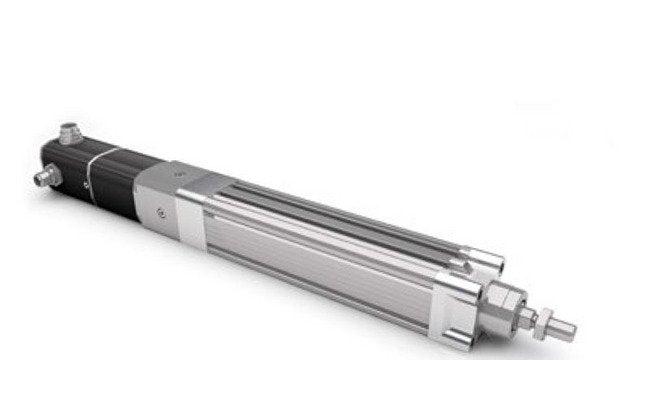

The 300 Newton (N) Constant Force Electric Cylinder by Dunkermotoren is a cutting-edge solution for precise linear motion control. With brushless DC servomotors and a lead screw spindle, this electric cylinder offers a peak force of 300N and maximum traverse speed of 60mm/s. Its twist-protected thrust rod and exceptional repeatability of ±0.07mm ensure reliable performance. Compliant with European Conformity (CE) and Underwriters Laboratories (UL) standards, it meets industry demands for high efficiency, low noise, and maintenance-free operation. Ideal for institutional applications requiring precise positioning and programmable functionality.
Product Specifications
Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 42 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
300 N
Technical Specs Feedback Integrated
1024 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Lifetime L10
70 km
Technical Specs Maximum Acceleration
1 mm/s²
Technical Specs Maximum Traverse Speed
60 mm/s
Technical Specs Motor Type
BG 45x30
Technical Specs Nominal Current
4.9 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Peak Current 2 Second S
15 A
Technical Specs Peak Force
300 N
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.07 mm
Technical Specs Spindle Pitch
1.5 mm
Technical Specs Spindle Version
LS (Lead Screw)
Technical Specs Stroke Length
50 mm | 100 mm | 150 mm | 200 mm | 300 mm | 400 mm
