300pF Capacitance Humidity Sensor for Industrial Applications
300pF Capacitance Humidity Sensor for Industrial Applications
SKU:HUM-8e174b
Accurate and reliable 300pF Capacitance Humidity Sensor for industrial use. RoHS compliant with high precision.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
300pF Capacitance Humidity Sensor for Industrial Applications
$49.99
Quantity: 1
Claim Your Seller Account
300pF Capacitance Humidity Sensor for Industrial Applications
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

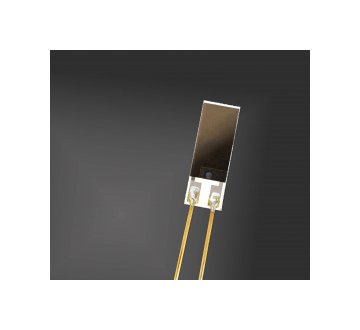

The 300 Picofarads (pF) Capacitance Humidity Sensor is designed for precise humidity measurement in industrial settings. Manufactured by Innovative Sensor Technology, USA Division, this sensor delivers high accuracy with a capacitance of 300 pF and a tolerance of ±40 pF. It operates in a wide range of 0 to 100% relative humidity and can withstand temperatures from -40 to +190 ºC. With RoHS compliance, gold/copper wire construction, and compact dimensions of 10.8mm x 3.81mm x 0.4mm, this sensor is ideal for oil measurement applications.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
10.8 mm
Dimensions Width
3.81 mm
Specifications Capacitance
300 pF
Specifications Capacitance Tolerance At 23 Degree Celsius C Temp
40 pF
Specifications Manufacturer Part Number
MK33-W (300pF ± 40pF)
Specifications Old Product Code
040.00180
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-40 to +190 ºC
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Wire Diameter
0.4 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Gold (Au)/Copper (Cu)
