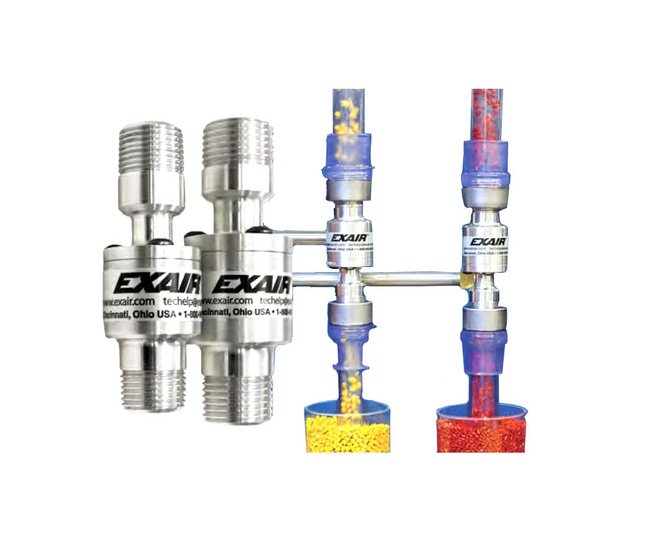

303 Stainless Steel 2 NPT Threaded Line Vac Conveyor
303 Stainless Steel 2 NPT Threaded Line Vac Conveyor
SKU:THR-29cd9c
Powerful 303 Stainless Steel 2 NPT Line Vac Conveyor for efficient bulk material conveying over long distances.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
303 Stainless Steel 2 NPT Threaded Line Vac Conveyor
$399.99
Quantity: 1
Claim Your Seller Account
303 Stainless Steel 2 NPT Threaded Line Vac Conveyor
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 303 Stainless Steel 2 NPT Threaded Line Vac Conveyor is a powerful solution for efficiently conveying plastic pellets, scrap, textiles, bulk solids, chips, paper, small parts, shavings, sawdust, and granules over long distances. Convert ordinary pipe into a robust conveying system effortlessly with this premium conveyor that offers high throughput capability and quiet operation. Designed for durability and maintenance-free operation, this conveyor ensures instant response with infinite control of conveying rate, making it ideal for various institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
45 SCFM | 1274 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1.17 in | 30 mm
Specifications Dimension J
2.34 in | 59 mm
Specifications Dimension K
0.28 in | 7 mm
Specifications Dimension L
1.48 in | 38 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.13 in | 54 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
2 NPT
Specifications Inside Diameter
1.75 in | 44 mm
Specifications Material
303 Stainless Steel
Specifications Outlet Thread Size
2 NPT
Specifications Outside Diameter
3.25 in | 83 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pipe Size
2 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-28.5 inWc | -7 kPa
