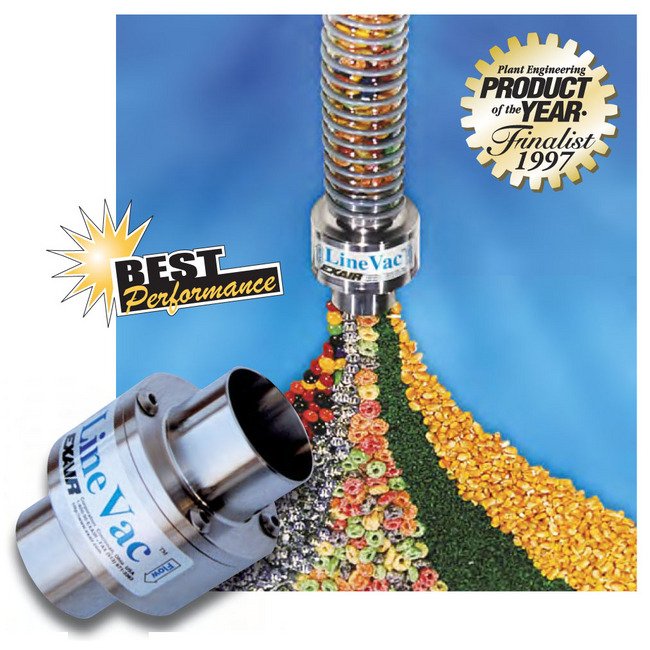

303 Stainless Steel Line Vac Conveyor - 1-1/2" Inlet/Outlet

Name: 303 Stainless Steel Line Vac Conveyor - 1-1/2" Inlet/Outlet
Brand: Exair LLC
SKU: LIN-ae2a2d
Price: 749.99 USD
Availability: OutOfStock

SKU:LIN-ae2a2d

Efficiently convey various materials with the durable 303 Stainless Steel Line Vac Conveyor. Maximum throughput capability in a compact, no-moving-parts design.

$749.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 303 Stainless Steel Line Vac Conveyor is a versatile solution for efficiently conveying plastic pellets, bulk solids, small parts, and more. Crafted from high-grade stainless steel for durability and corrosion resistance, this conveyor features a compact design with large throat diameters, ensuring maximum throughput capability. With no moving parts, it connects easily to standard hoses or tubes, making it ideal for applications in chip removal, material conveying, and waste removal. This conveyor offers reliability, efficiency, and compliance with stringent industry standards.

Product Specifications

Specifications Advantages

Specifications Air Consumption

33 SCFM | 934 SLPM

Specifications Air Inlet

1/4 NPT

Specifications Applications

Specifications Corrosion Resistance

Good

Specifications Dimension E

2.13 in | 54 mm

Specifications Dimension F

1.25 in | 32 mm

Specifications Dimension H

1.25 in | 32 mm

Specifications Dimension I

0.86 in | 22 mm

Specifications Dimension J

1.73 in | 44 mm

Specifications Dimension K

0.25 in | 6 mm

Specifications Dimension L

1.44 in | 37 mm

Specifications Dimension M

0.06 in | 2 mm

Specifications Dimension N

1.88 in | 48 mm

Specifications Dimension O

0.28 in | 7 mm

Specifications Hose Size

1.50 in | 38 mm

Specifications Inlet Size

1-1/2 in | 38 mm

Specifications Inside Diameter

1.25 in | 32 mm

Specifications Material

303 Stainless Steel

Specifications Outlet Diameter

1-1/2 in | 38 mm

Specifications Outside Diameter

2.75 in | 70 mm

Specifications Overall Length

4.38 in | 111 mm

Specifications Overall Width

2.50 in | 64 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Temperature Rating

400 ºF | 204 ºC

Specifications Vacuum Pressure

-36.8 inWc | -9 kPa
